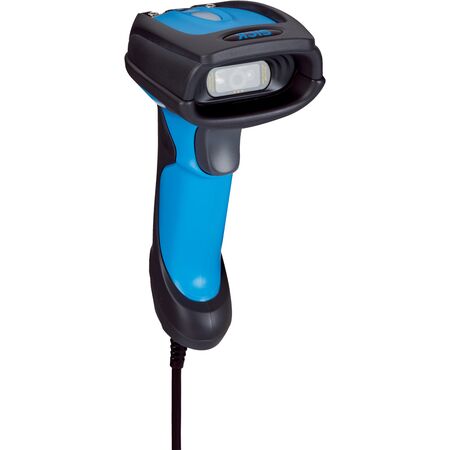

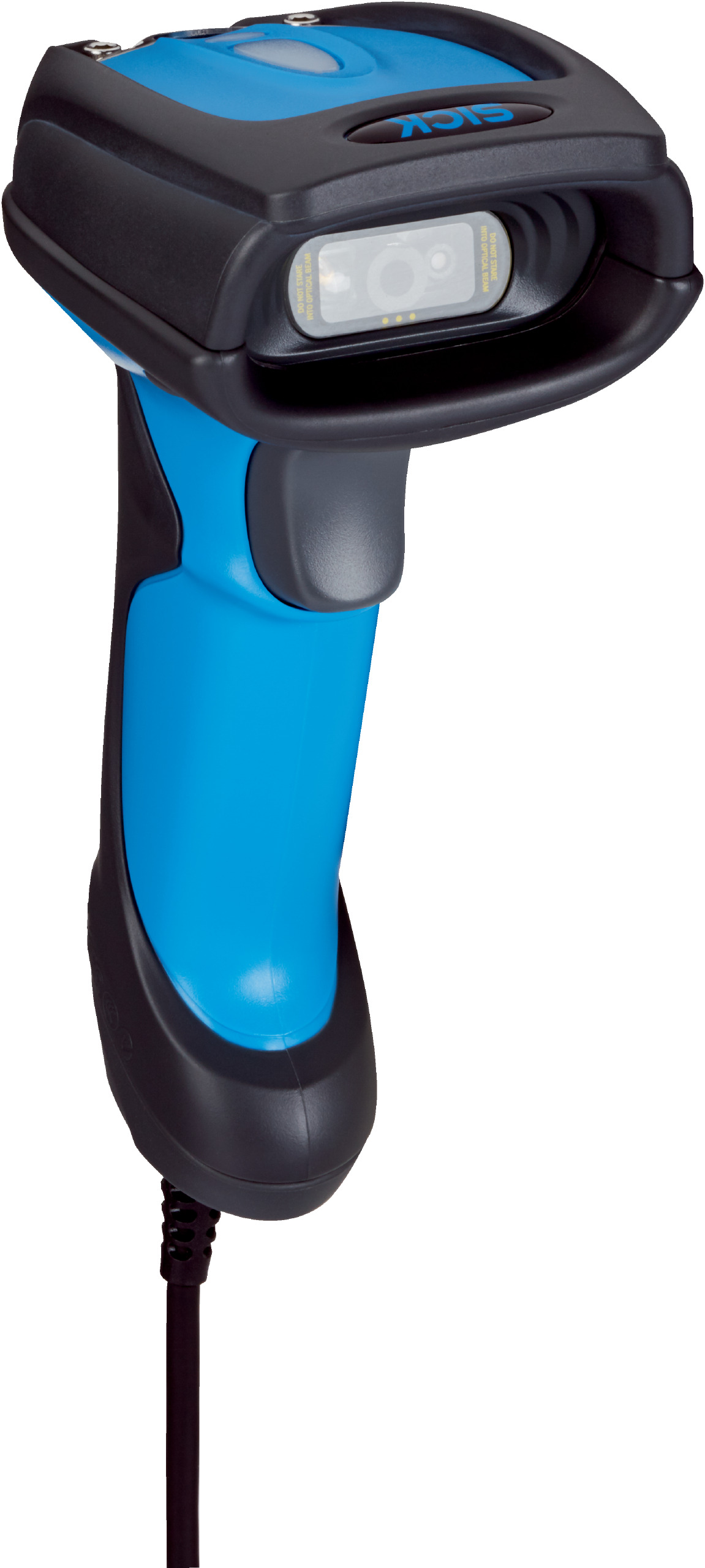

IDM260-411S USB Kit | 1280 px x 800 px Resolution | IP65 Rated | by SICK
The IDM260-411S USB Kit is designed for industrial barcode scanning, featuring a high sensor resolution of 1280 px x 800 px and a robust IP65 rated housing. With a reading distance of 30 mm to 400 mm and support for 1D, 2D, and stacked codes, it's perfect for manufacturing and logistics applications, ensuring precise and reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 800 px
- Light source: LED, visible red, 660 nm
- Alignment aid: Laser, red, 630 nm, Laser class 1 (EN/IEC 60825-1:2014)
- Reading distance: 30 mm to 400 mm
- Code resolution: ≥ 0.07 mm (1D), ≥ 0.13 mm (2D)
- Supply voltage: 5 V DC, ±10%
- Current consumption: 395 mA (operation, vibration off), 420 mA (operation, vibration on), 220 mA (standby)
- Housing color: Blue, gray
- Enclosure rating: IP65
- Weight: 208 g without cable
- MTBF: 100,000 hours
- Readable code structures: 1D, 2D, stacked codes
- Interfaces: USB with keyboard wedge and COM-Port emulation
- Indicators: 2 LEDs (operational status, good read), beeper (switchable), vibration feedback
- Configuration software: IDM Setup Tool
- Shock resistance: 50 drops from 2 m height on concrete
- Operating temperature: -20°C to +50°C
- Storage temperature: -40°C to +70°C
- Relative humidity: 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 176mm x 104mm x 76mm
- Weight: 0.208 kg
Key Features
- High sensor resolution of 1280 px x 800 px for precise scanning
- LED visible red light source at 660 nm
- Laser alignment aid with red laser at 630 nm, Laser class 1
- Reading distance from 30 mm to 400 mm
- Supports a wide range of 1D, 2D, and stacked barcode types
- USB interface with keyboard wedge and COM-Port emulation
- Optical and acoustic indicators with vibration feedback
- Robust IP65 rated housing for industrial environments
- Shock resistant to 50 drops from 2 m height on concrete
- Wide ambient operating temperature range from -20°C to +50°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper USB connection and configuration.
Applications
- Industrial applications requiring barcode scanning
- Reading 1D, 2D, and stacked codes in manufacturing and logistics
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IDM260-411S USB Kit is available for immediate purchase, ideal for industrial barcode scanning applications requiring high precision and durability.
