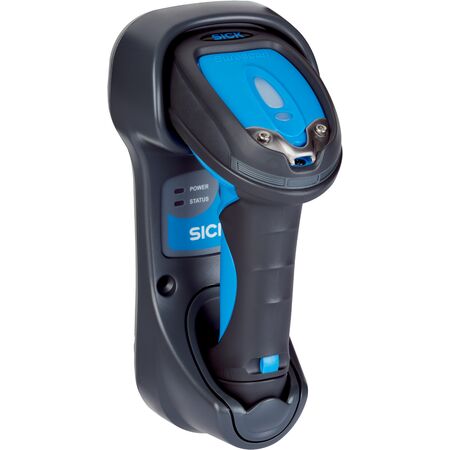

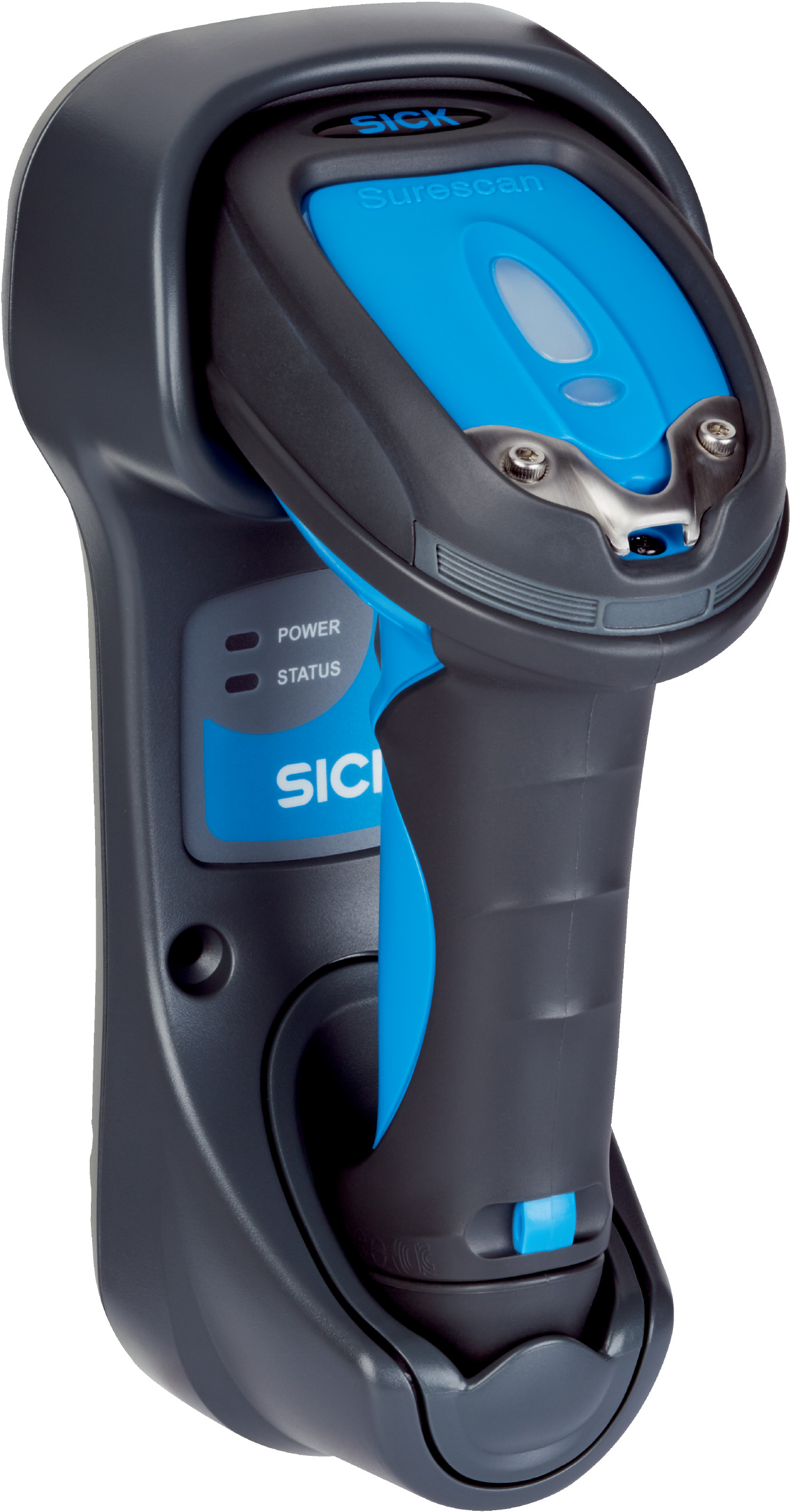

IDM261-411S RS-232 Kit | Wireless Barcode Scanner | 1280 px x 800 px Resolution | IP65 Rated | by SICK
The IDM261-411S RS-232 Kit is a wireless barcode scanner designed for industrial applications, featuring a high sensor resolution of 1280 px x 800 px and an IP65 rated enclosure for dust and water resistance. With Bluetooth V4.0 connectivity and the ability to read 1D, 2D, and stacked barcodes, it’s perfect for environments requiring robust and reliable code reading, ensuring over 60,000 scans per full charge.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 800 px
- Light source: LED visible red, 660 nm
- Alignment aid: Laser red, 630 nm, Laser class 1 (EN/IEC 60825-1:2014)
- Reading distance: 30 mm to 400 mm
- Code resolution: ≥ 0.07 mm and ≥ 0.13 mm
- Supply voltage: 5 V DC ± 5%
- Current consumption: 750 mA operation, 175 mA standby
- Enclosure rating: IP65
- Weight: 228 g
- MTBF: 100,000 hours
- Readable codes: 1D, 2D, stacked codes including Code 39, QR, Data Matrix, PDF417, and postal codes
- Battery power: Over 60,000 scans per full charge
- Code buffer: 5,000 codes for batch mode, 100,000 codes for out of range scanning
- Interfaces: RS-232, Ethernet TCP/IP, PROFINET, EtherCAT, PROFIBUS DP, Bluetooth V4.0
- Shock resistance: 50 drops from 2 m height on concrete
- Operating temperature: -20°C to +50°C
- Storage temperature: -40°C to +70°C
- Relative humidity: 95% non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 176mm x 104mm x 76mm
- Weight: 0.228 kg
Key Features
- Wireless variant scanner design with Bluetooth V4.0 and up to 100 m operating range
- High sensor resolution of 1280 px x 800 px
- LED visible red light source at 660 nm and laser alignment aid at 630 nm
- Reads 1D, 2D, and stacked barcodes including QR, Data Matrix, PDF417, and many postal codes
- Battery supports over 60,000 scans per full charge
- IP65 rated enclosure for dust and water resistance
- Shock resistant to 50 drops from 2 m height on concrete
- Multiple interface options including RS-232, Ethernet, PROFINET, EtherCAT, PROFIBUS DP
- Optical, acoustic, and vibration indicators for status feedback
- Code buffer supports up to 100,000 codes for out of range scanning
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with electrical and communication standards.
Applications
- Industrial applications requiring wireless barcode scanning
- Environments needing robust and reliable code reading
- Batch scanning and wireless communication setups
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Wireless operation reduces cable waste and installation impact
- Long battery life minimizes frequent charging and energy consumption
- Durable IP65 housing extends product lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK IDM261-411S RS-232 Kit is available for immediate purchase, ideal for industrial wireless barcode scanning applications.
