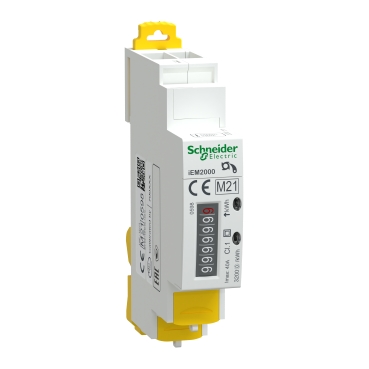

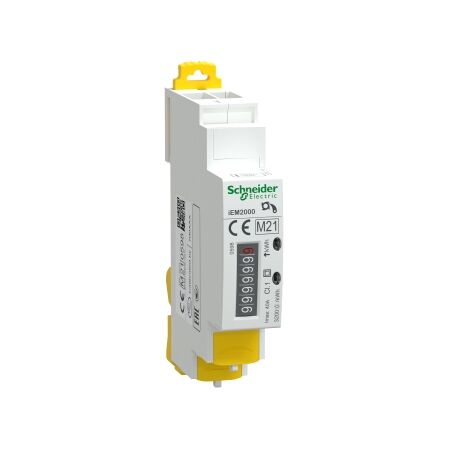

iEM2000 40A CI 1 Energy Meter Counter | Direct Connection | LCD Display | DIN Rail Mount | @Pack of 1 | by Clipsal
The iEM2000 40A CI 1 Energy Meter Counter is designed for accurate energy monitoring, featuring a direct connection for up to 40A and an easy-to-read LCD display. Ideal for residential and commercial applications, this single-phase energy meter supports energy management and load monitoring, ensuring efficient power usage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: iEM2000 40A CI 1 Energy Meter Counter | Direct Connection | LCD Display | DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9MEM2000
Alternatively Known As: iEM2000 energy meter, Clipsal energy meter, Schneider iEM2000, SCHA9MEM2000, single phase energy meter, DIN rail energy meter
Technical Specifications
- Rated current: 40A direct connection
- Voltage: 230V AC, 50/60Hz
- Measurement: Active energy (kWh)
- Display: LCD
- Accuracy: Class 1 (IEC 62053-21)
- Pulse output: 1 output, 1000 pulses/kWh
- Mounting: DIN rail (1 module width)
- Operating temperature: -25°C to +55°C
- Dimensions (H x L x W): 90mm x 65mm x 18mm
- Weight: 0.15 kg
Key Features
- Direct connected up to 40A without external CTs
- Single phase energy meter for active energy measurement
- LCD display for easy reading of energy data
- Compact DIN rail mounting design
- Pulse output for remote monitoring integration
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential: Monitoring household energy consumption
- Commercial: Sub-metering in offices, retail, and industrial facilities
- General: Energy management and load monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring to support energy efficiency initiatives
- Helps identify and reduce unnecessary power consumption
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal iEM2000 40A CI 1 Energy Meter Counter (SCHA9MEM2000) is available for immediate purchase. Ideal for accurate energy monitoring in residential and commercial electrical installations.
