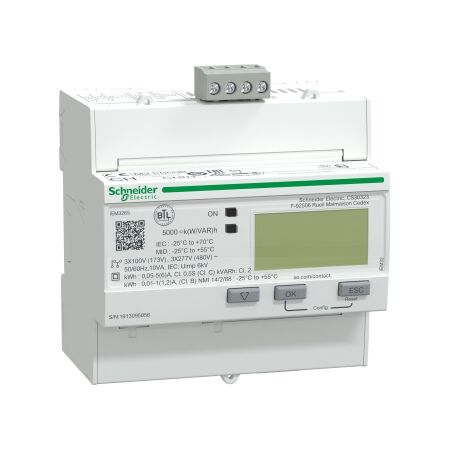

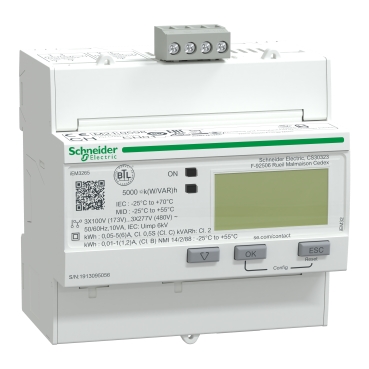

IEM3265 Energy Meter | MID Certified | BACnet Communication | Multi-Tariff Support | @Pack of 1 | by Clipsal
The IEM3265 Energy Meter is designed for precise energy monitoring in commercial, industrial, and residential applications. With MID certification for billing, BACnet communication for seamless integration, and multi-tariff support for advanced energy cost management, this meter is perfect for optimizing energy usage. Its compact DIN rail mounting ensures easy installation, making it a reliable choice for energy management systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IEM3265 Energy Meter | MID Certified | BACnet Communication | Multi-Tariff Support | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9MEM3265
Alternatively Known As: IEM3265 BACnet Energy Meter, Clipsal MID Energy Meter, SCHA9MEM3265, Schneider Electric IEM3265, CT BACnet Power Meter
Technical Specifications
- Measurement type: 3-phase, 4-wire, direct or CT connection
- Input voltage: 230/400V AC
- Current input: via external CT (1A/5A secondary)
- Communication: BACnet MS/TP
- MID certified (EN50470-1/3)
- Digital input: 1
- Digital output: 1
- Multi-tariff support
- Display: LCD with backlight
- Mounting: DIN rail
- Operating temperature: -25°C to +55°C
- Dimensions (H x L x W): 90mm x 65mm x 54mm
- Weight: 0.3 kg
Key Features
- MID certified for billing applications
- Supports CT (Current Transformer) connection for high current measurement
- BACnet communication protocol for seamless integration with BMS
- Multi-tariff capability for advanced energy cost management
- 1 digital input and 1 digital output for flexible control and monitoring
- Compact DIN rail mounting for easy installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician, ensuring correct CT wiring and BACnet network integration.
Applications
- Commercial buildings: energy monitoring and management
- Industrial facilities: sub-metering and load analysis
- Residential complexes: tenant billing and consumption tracking
- Renewable energy systems: solar and distributed generation monitoring
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring to support energy efficiency initiatives
- Facilitates load management and reduction of unnecessary energy consumption
- Supports integration with building management systems for optimized resource use
Warranty Information
2 years manufacturer's warranty against defects.
Available Now
The Clipsal IEM3265 Energy Meter - CT BACnet (SCHA9MEM3265) is available for immediate purchase. Ideal for commercial, industrial, and residential energy monitoring and management.
