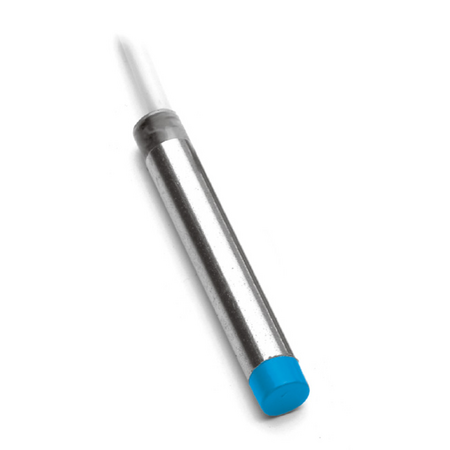

IH06-04NNS-VWK | Inductive proximity sensors
The SICK IH06-04NNS-VWK is a short-body inductive proximity sensor with a 4 mm sensing range, designed for reliable non-contact metal detection in industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IH06-04NNS-VWK | Inductive proximity sensors
Brand: SICK
SKU: 6025881
Alternatively Known As: Inductive Proximity Sensor, Metal Proximity Sensor, NPN Proximity Switch, Short Body Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 2,500 Hz
- Output function: Normally Open (NO), NPN
- Electrical wiring: DC 3-wire
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- Cable: PVC, 3-wire, 2 m length, 0.14 mm² conductor size, 3.1 mm diameter
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, POM
- Enclosure rating: IP67
- Dimensions (H x L x W): 6.5mm x 35.5mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing with stainless steel V2A material
- Non-flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- High switching frequency of 2,500 Hz
- NPN normally open output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable connection type with 2 m PVC cable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper sensor function and compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing processes
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable stainless steel housing extends product lifespan
- Energy-efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IH06-04NNS-VWK Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
