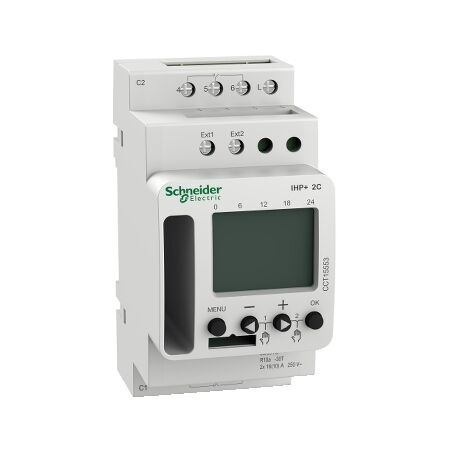

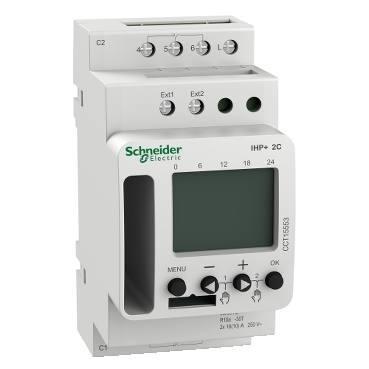

IHP +2C Smart Timeclock | Dual Channel | LCD Display | 16A Switching Capacity | @Pack of 1 | by Clipsal
The IHP +2C Smart Timeclock is a dual-channel digital programmable timer designed for efficient lighting and HVAC control. With an easy-to-read LCD display and the ability to program up to 56 schedules, it’s perfect for both commercial and residential applications. Featuring a manual override and battery backup, this timeclock ensures reliable operation and energy savings, making it an essential tool for modern building management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IHP +2C Smart Timeclock | Dual Channel | LCD Display | 16A Switching Capacity | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHCCT15553
Alternatively Known As: Clipsal digital time switch, programmable timer, dual channel timeclock, SCHCCT15553 timer, Clipsal smart timer
Technical Specifications
- Supply Voltage: 230-240V AC, 50/60Hz
- Number of Channels: 2 (independent)
- Switching Capacity: 16A per channel (resistive load)
- Programming: Daily/weekly with up to 56 programs
- Display: LCD
- Backup: Rechargeable battery (settings retained for up to 4 years)
- Mounting: DIN rail
- Manual Override: Yes
- Operating Temperature: -10°C to +50°C
- Ingress Protection: IP20
- Dimensions (H x L x W): 90mm x 65mm x 36mm
- Weight: 0.25 kg
Key Features
- Digital programmable time switch with 2 channels
- LCD display for easy programming and status monitoring
- Multiple daily and weekly programming options
- Manual override function
- Battery backup to retain settings during power outages
- DIN rail mounting for easy installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Lighting control in commercial and residential buildings
- Automation of heating, ventilation, and air conditioning (HVAC) systems
- Control of pumps, fans, and other electrical equipment
- Energy management in offices, schools, and industrial facilities
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables energy savings by automating electrical loads
- Reduces unnecessary power consumption
- Supports efficient building management
Warranty Information
12 months manufacturer's warranty.
Available Now
The Clipsal IHP +2C Smart Timeclock SCHCCT15553 is available for immediate purchase. Ideal for automating lighting, HVAC, and other electrical systems in commercial and residential environments.
