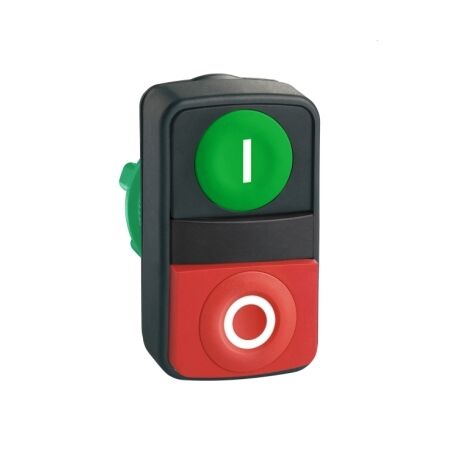

Illuminated Double Headed Push-Button | Green Flush & Red Projecting | 22mm | IP66/IP69K by Clipsal
Illuminated double-headed push-button with green flush and red projecting buttons—ideal for industrial control panels and machinery interfaces. Built for durability with IP66/IP69K protection and 1,000,000 cycle mechanical endurance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Harmony XB5, Head for illuminated double headed push-button, 1 green flush/ 1 red projecting, 22mm, unmarked
Brand: Clipsal
SKU: ZB5AW7L3740
Alternatively Known As: Harmony XB5 Push Button, Illuminated Push Button, Double Headed Push Button
Technical Specifications
- Product type: Head for illuminated double-headed push-button
- Compatibility: Integral LED
- Mounting diameter: 22 mm
- Electrical shock protection class: Class II conforming to IEC 60536
- NEMA degree of protection: NEMA 13, NEMA 4X
- Vibration resistance: 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Shock resistance: 30 gn (duration = 18 ms) conforming to IEC 60068-2-27
- Dimensions (H x L x W): 50mm x 35mm x 30mm
- Weight: 0.023 kg
Key Features
- Illuminated double-headed push-button with one green flush and one red projecting button.
- IP66/IP69/IP69K rated for protection against dust and water.
- Mechanical durability of 1,000,000 cycles.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Control panels, machinery interfaces
- Commercial: Equipment control, automation systems
Standards & Compliance
- Complies with IEC 60947-5-4, UL 508, CSA C22.2 No 14
Environmental Benefits
- Packaging made with recycled cardboard.
- Green Premium product status.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB5 Illuminated Double Headed Push-Button is available now for immediate purchase. Ideal for industrial control applications.
