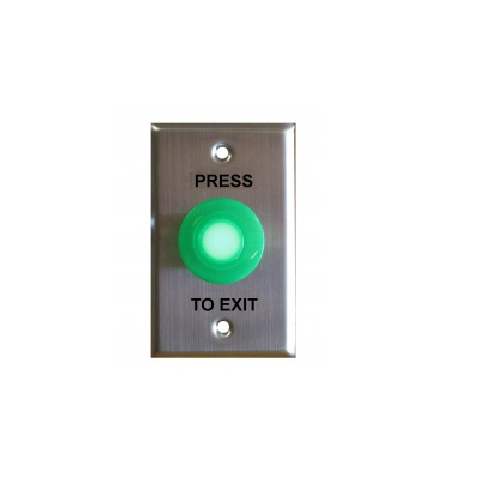

Illuminated Exit Button Mushroom Head Green LED Ness

BRAND: Ness
SKU: 101-114
$64.80 List price: $86.40
+ −
30 Days Return Electricians Unlock Trade Access
Ness illuminated exit button features a mushroom head, a green LED and easy activation. Ideal for access control installs.

Alternatively Known As: Request-to-Exit Button, REX Button, Mushroom Exit Button, Access Control Exit Button

Technical Specifications
  • Product Type: Momentary request-to-exit button
  • Button Type: Big mushroom head
  • Button Colour: Green
  • LED: Green, 12V, 12mA
  • Contact Configuration: 1 x normally open and 1 x normally closed, isolated
  • Maximum Current: 10A at 12V or 24V DC
  • Minimum Current: 5mA
  • Contact Resistance: ≤50mΩ
  • Insulation Resistance: >100MΩ
  • Electrical Life: 50,000 cycles
  • Mechanical Life: 1,000,000 cycles
  • Manufacturer SKU: 101-114
  • Manufacturer Model: WEL2221
  • Dimensions (H x L x W): 115mm x 70mm x 53mm
  • Weight: 0.25 kg
Key Features
  • Large mushroom-style button for easy activation
  • Green LED provides clear visual indication
  • Momentary switching action
  • Isolated normally open and normally closed contacts
  • Suitable for 12V DC and 24V DC access control circuits
  • Designed for request-to-exit and door release applications
  • High mechanical life rated to 1 million cycles
Professional Installation Requirements
  • Installation and wiring should be completed by a suitably qualified security or electrical installer. Confirm the access control system voltage and contact load before connection, and install in accordance with applicable wiring and access control requirements.
Applications
  • Access control request-to-exit systems
  • Electronic door release circuits
  • Commercial and industrial security doors
  • Office, retail and public building access points
  • Security-controlled internal doors and gates
Environmental Benefits
  • Low-power 12V LED indication reduces illumination energy consumption
  • Long mechanical life can reduce replacement frequency and associated waste
  • Durable switching construction supports extended service life
Warranty Information

Ness warranty claims are handled through Ness Corporation branches. Products deemed faulty may be repaired or replaced at Ness Corporation’s discretion, subject to the manufacturer’s warranty terms and Australian Consumer Law.

Available Now

Available through Ness Corporation and authorised Australian security and electrical distributors.
