Illuminated Indicator Bank | 5 Joules | 230V AC | IP66 Rated | Clear by Clipsal
Illuminated indicator bank with 5 Joules flash energy and 230V AC supply—ideal for industrial and commercial signaling. Built for durability with IP66 rating and clear polycarbonate design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

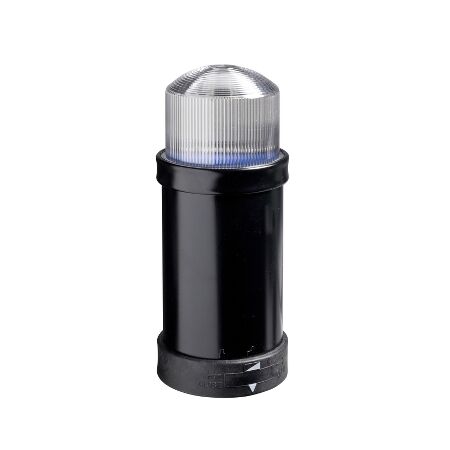

Product Name/Title: Harmony XVB, Indicator bank, illuminated unit, plastic, clear, 70mm, integral flash discharge tube, 5joule, 230V AC
Brand: Clipsal
SKU: XVBC6M7
Alternatively Known As: Illuminated Indicator Bank, Flashing Indicator Light, Signal Beacon
Technical Specifications
- Rated supply voltage: 230V AC
- Current consumption: < 105 mA AC
- Material: Polycarbonate
- Flashing frequency: 1 Hz
- Illuminating intensity: 13 cd
- Rated insulation voltage: 250 V
- Rated impulse withstand voltage: 4 kV
- Dimensions (H x L x W): 157mm x 70mm x 70mm
- Weight: 0.284 kg
Key Features
- Illuminated indicator bank with integral flash discharge tube.
- IP65 rated on fixing base and IP66 on base unit for enhanced protection.
- Flashing frequency of 1 Hz with 5 Joules of flash energy.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Manufacturing facilities, warehouses, and production lines
- Commercial: Retail environments and public spaces requiring visual signaling
Standards & Compliance
- Complies with IEC 60947-5-1 for safety and performance standards.
Environmental Benefits
- Packaging made with recycled cardboard and without single-use plastic.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XVB Indicator Bank is available now for immediate purchase. Ideal for industrial and commercial signaling applications.
