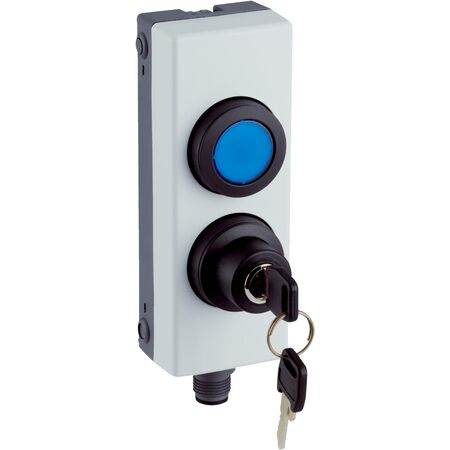

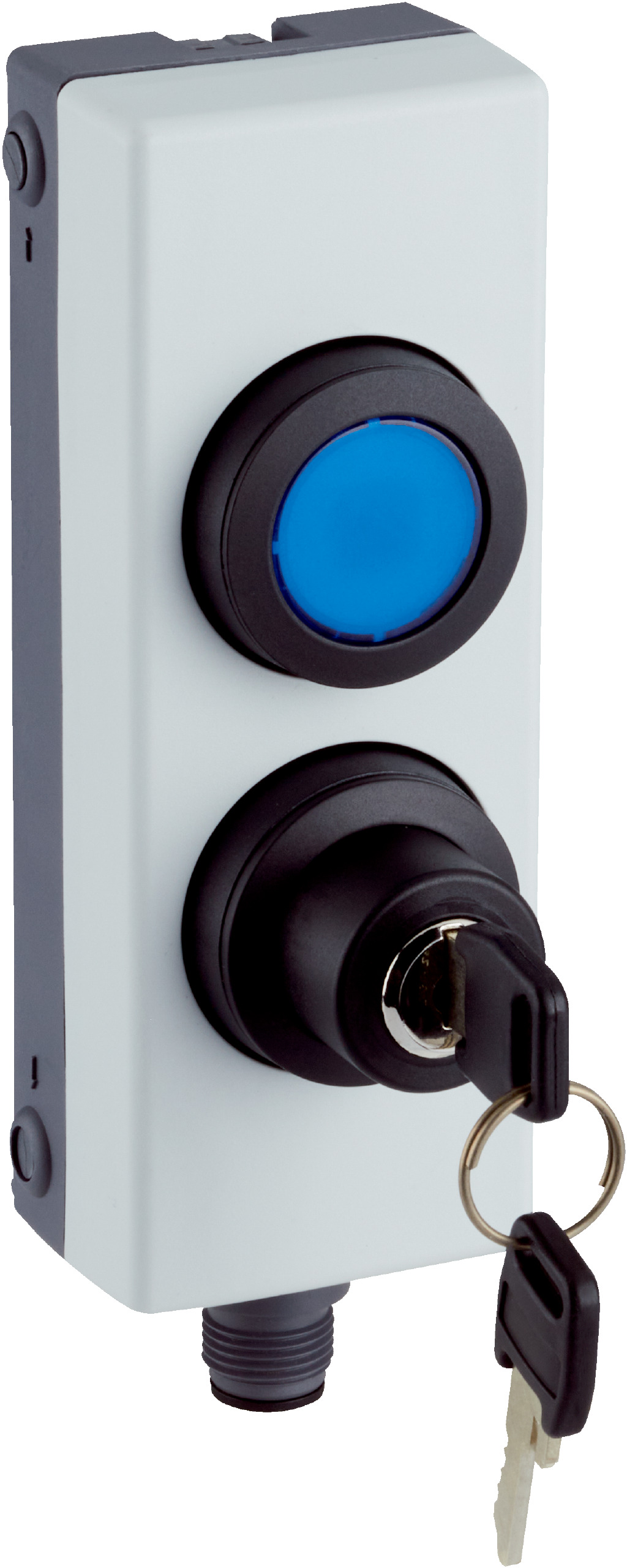

Illuminated Key-Operated Pushbutton Switch | 2 N/O Contacts | IP65 Rated | by SICK
The illuminated key-operated pushbutton switch is designed for industrial control applications, featuring 2 normally open contacts and an IP65 rated enclosure for dust and water protection. With a robust mechanical life of 1 million pushbutton cycles, it’s perfect for safety and muting applications, ensuring reliable operation in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- N/O contacts: 2
- Pushbutton (illuminated) and key-operated pushbutton included
- Actuation directions: 2
- Connection type: Plug connector, M12, 5-pin with PBT coupling nut
- Protection class: III (EN 61140)
- Switching principle: Slow action switching element
- Power consumption: ≤ 250 W
- Rated operating current: 5 mA to 100 mA (5 V to 30 V)
- Contact material: AgNi
- Electrical life: 1,000,000 pushbutton cycles, 30,000 key-operated cycles
- Supply voltage for illumination: 30 V AC/DC
- Illumination power consumption: 14 mA at 24 V DC
- Housing material: PBT
- Mechanical life: 1,000,000 pushbutton cycles, 30,000 key-operated cycles
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -25°C to +70°C
- Storage temperature: -25°C to +80°C
- Dimensions (H x L x W): 123mm x 36mm x 40mm
- Weight: 0.13 kg
Key Features
- 2 normally open (N/O) contacts
- Illuminated pushbutton and key-operated pushbutton
- Suitable for muting applications with DMM4
- Slow action switching element
- High mechanical and electrical life: 1 million pushbutton cycles, 30,000 key-operated cycles
- IP65 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +70°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical safety standards to ensure proper wiring and compliance.
Applications
- Industrial control panels
- Safety and muting applications
- Machine operation and control
- Emergency stop and reset functions
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption illumination (14 mA at 24 V DC)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ER12-SE6F5 pushbutton switch is available for immediate purchase, ideal for industrial safety and control panel applications.
