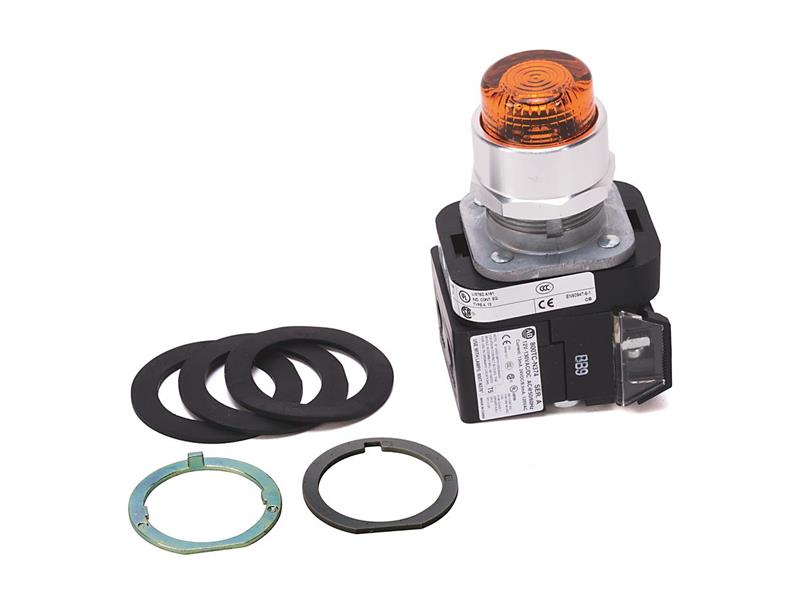

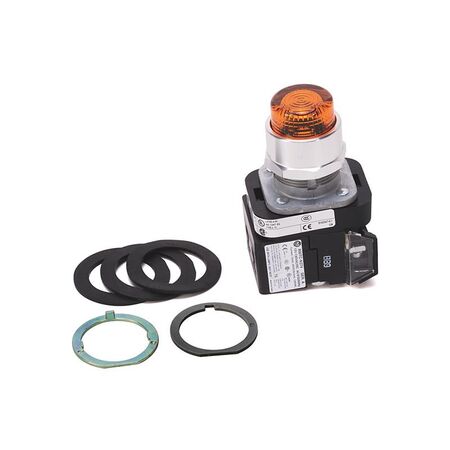

Product Name/Title: Allen-Bradley 800TCQB24R Illuminated Momentary Push Button
Brand: Allen-Bradley
SKU: 800TCQB24R
Alternatively Known As: Momentary Push Button Switch, Illuminated Push Button, Industrial Control Button, Allen-Bradley Push Button 24V
Technical Specifications
- Button Diameter: 30.5 mm
- Contact Type: Momentary, 1 NO 1 NC
- Voltage Rating: Full voltage 24V AC/DC
- Illumination: Transformer/full voltage incandescent
- Protection Rating: Type 4/13
- Terminal Guards: Included
- Head Style: Extended without guard
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.2 kg
Key Features
- 30.5 mm momentary contact push button
- Illuminated with full voltage 24V AC/DC
- Metal construction with Type 4/13 rating for harsh environments
- Guards on terminals for safety
- Extended head without guard design
- Standard configuration: 1 Normally Open (NO) and 1 Normally Closed (NC) contact
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
- Industrial control panels
- Machinery operation and control
- Automation systems requiring momentary contact switches
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal construction reduces replacement frequency and waste
- Energy-efficient incandescent illumination for clear visibility
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TCQB24R Illuminated Momentary Push Button is available for immediate purchase, ideal for industrial and automation control applications.
