Illuminated Momentary Push Button | 30.5 mm Diameter | Amber Incandescent | Type 4/13 Rated | by Allen-Bradley
Illuminated Momentary Push Button | 30.5 mm Diameter | Amber Incandescent | Type 4/13 Rated | by Allen-Bradley
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

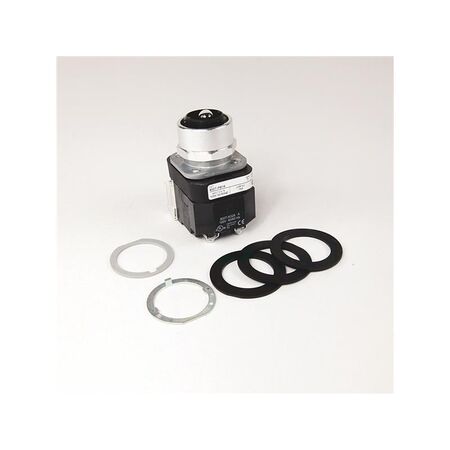

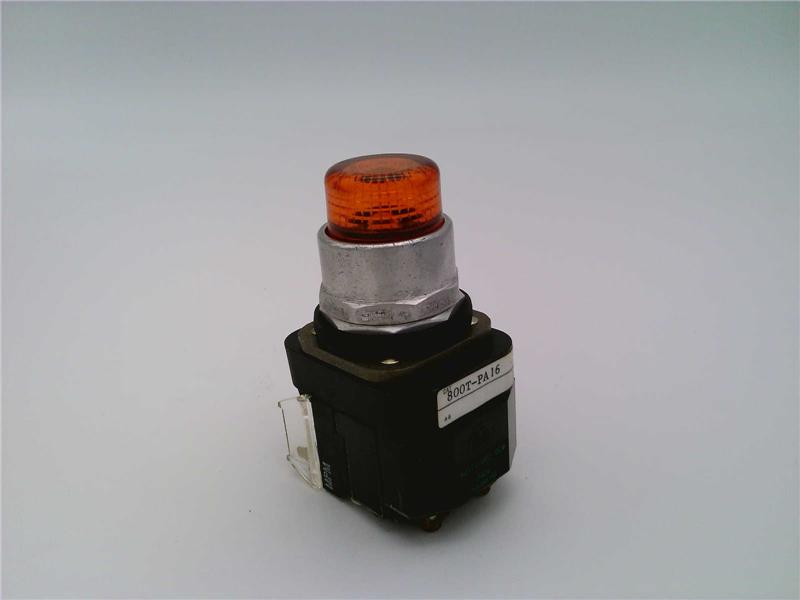

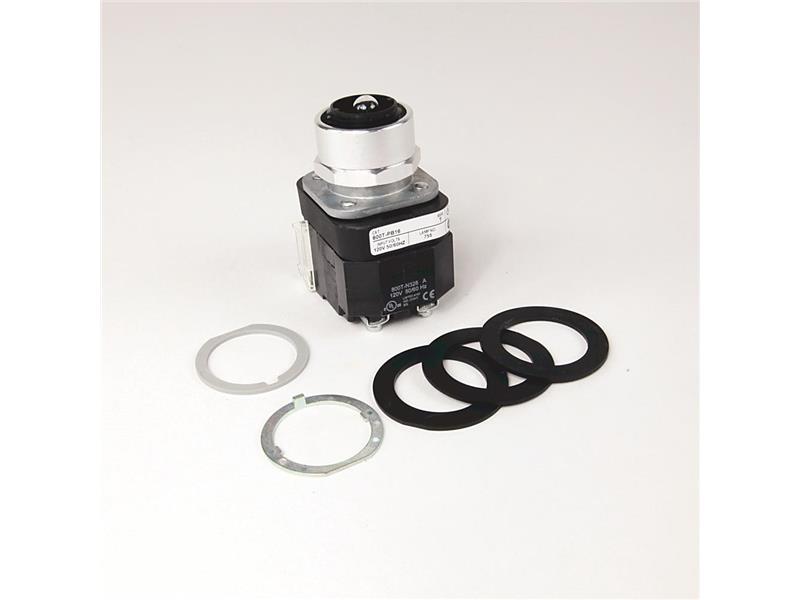

Product Name/Title: Allen-Bradley 800TPB26A Illuminated Momentary Push Button
Brand: Allen-Bradley
SKU: 800TPB26A
Alternatively Known As: Illuminated Push Button Switch, Momentary Push Button, Amber Push Button, Industrial Control Button
Technical Specifications
- Button Diameter: 30.5 mm
- Contact Type: Momentary
- Illumination: Amber incandescent transformer
- Voltage: Transformer / Full voltage - 240V AC 50/60 Hz
- Material: Metal
- Protection Rating: Type 4/13
- Contact Configuration: 1 NO (Normally Open), 1 NC (Normally Closed)
- Extended head without guard
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.2 kg
Key Features
- 30.5 mm momentary contact push button
- Illuminated with amber incandescent transformer
- Metal construction suitable for Type 4/13 environments
- Extended head without guard
- Standard configuration: 1 Normally Open (NO) and 1 Normally Closed (NC) contact
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
- Industrial control panels
- Machinery operation and control
- Automation systems requiring momentary contact switches
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal construction reduces replacement frequency and waste
- Low power consumption incandescent transformer illumination
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TPB26A Illuminated Momentary Push Button is available for immediate purchase, ideal for industrial and automation control applications.
