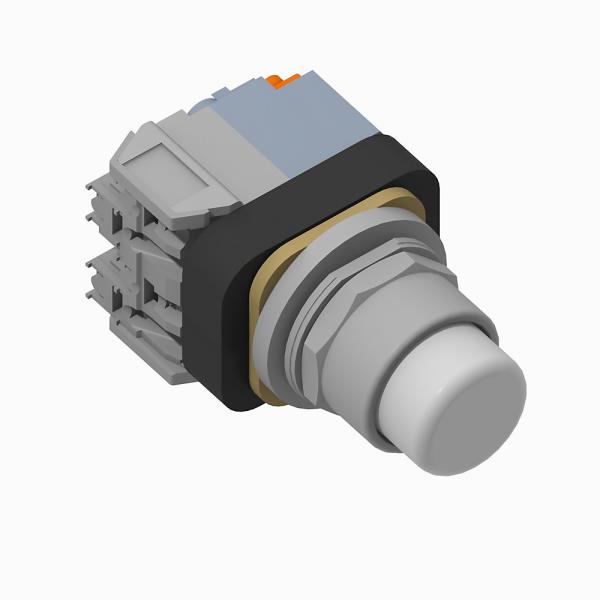

Product Name/Title: Allen-Bradley 800TCPBH16W Illuminated Momentary Push Button
Brand: Allen-Bradley
SKU: 800TCPBH16W
Alternatively Known As: Illuminated Push Button Switch, Momentary Push Button, Industrial Control Button, LED Push Button
Technical Specifications
- Button Diameter: 30.5 mm
- Contact Type: Momentary
- Illumination: LED
- Material: Metal
- Protection Rating: Type 4/13
- Terminal Guards: Yes
- Head Type: Extended without guard
- Voltage: Transformer/full voltage LED, 120V AC 50/60 Hz
- Contact Configuration: 1 Normally Open (NO), 1 Normally Closed (NC)
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.2 kg
Key Features
- 30.5 mm momentary contact push button
- Illuminated with LED
- Metal construction for durability
- Type 4/13 rated for protection against dust and water
- Guards on terminals for safety
- Extended head without guard
- Transformer/full voltage LED operation at 120V AC 50/60 Hz
- Standard contact configuration: 1 NO 1 NC
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper connection.
Applications
- Industrial control panels
- Machinery operation and control
- Automation systems requiring momentary contact switches
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- LED illumination reduces energy consumption compared to traditional bulbs
- Durable metal construction extends product lifespan, reducing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TCPBH16W Illuminated Momentary Push Button is available for immediate purchase, ideal for industrial and automation control applications.
