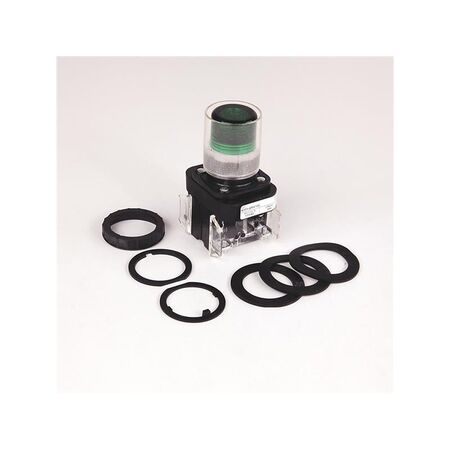

Illuminated Momentary Push Button | 30.5 mm Diameter | 120V AC/DC Lamp | Type 4/4X/13 Rated | by Allen-Bradley
The Illuminated Momentary Push Button from Allen-Bradley features a 30.5 mm diameter and is designed for industrial control applications. With a full voltage 120V AC/DC incandescent lamp and a Type 4/4X/13 protection rating, this push button ensures durability and reliability in automation systems. Ideal for machinery operation and control panels, it includes an extended head with guard for added safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Button Diameter: 30.5 mm
- Contact Type: Momentary contact
- Illumination: Full voltage 120V AC/DC incandescent lamp
- Material: Plastic
- Protection Rating: Type 4/4X/13
- Configuration: 1 Normally Open (NO), 1 Normally Closed (NC)
- Extended head with guard included
- No guards included
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.1 kg
Key Features
- 30.5 mm momentary contact push button
- Illuminated with full voltage 120V AC/DC incandescent lamp
- Plastic construction with Type 4/4X/13 protection rating
- Extended head with guard for protection
- Standard configuration: 1 Normally Open (NO) and 1 Normally Closed (NC) contact
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial control panels
- Machinery operation
- Automation systems requiring momentary contact switches
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable plastic construction reduces need for frequent replacements
- Energy-efficient incandescent illumination for clear visibility
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800HQRA10R Illuminated Momentary Push Button is available for immediate purchase, ideal for industrial and automation control applications.
