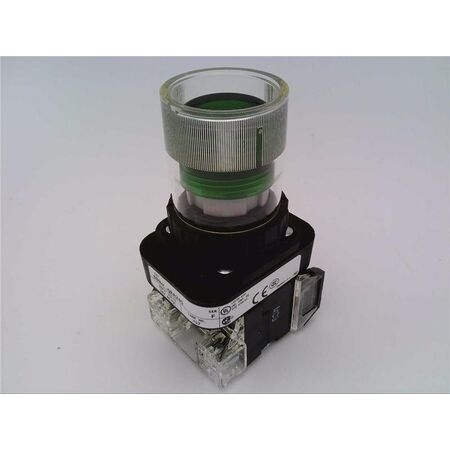

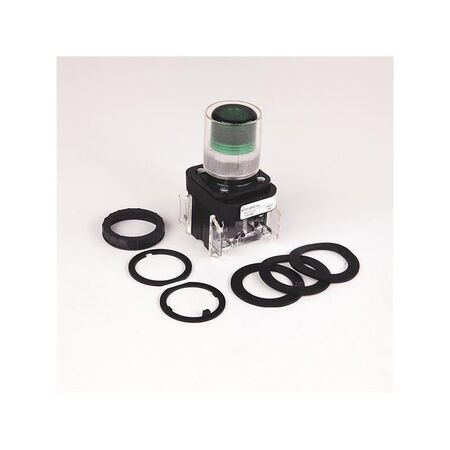

Illuminated Momentary Push Button | 30.5 mm Diameter | 24V AC/DC | Type 4/4X/13 Rated | by Allen-Bradley
The Illuminated Momentary Push Button is designed for industrial control applications, featuring a 30.5 mm diameter and momentary contact operation. With full voltage 24V AC/DC illumination and a durable plastic construction, it ensures safety and reliability in automation systems. Ideal for machinery operation and control panels, this push button is built to withstand harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Button Diameter: 30.5 mm
- Contact Type: Momentary, 1 Normally Open (NO), 1 Normally Closed (NC)
- Illumination Voltage: Full voltage 24V AC/DC
- Material: Plastic
- Protection Rating: Type 4/4X/13
- Terminal Guards: Included
- Extended Head with Guard: Yes
- Illumination Type: Transformer/Full Voltage - Incandescent
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.1 kg
Key Features
- 30.5 mm diameter push button
- Momentary contact operation
- Illuminated with full voltage 24V AC/DC
- Plastic construction with Type 4/4X/13 protection
- Guards on terminals for safety
- Extended head with guard for protection
- Standard contact configuration: 1 NO 1 NC
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery operation
- Automation systems requiring momentary contact switches
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable plastic construction reduces need for frequent replacements
- Energy-efficient LED illumination reduces power consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800HCQRA24G Illuminated Momentary Push Button is available for immediate purchase, ideal for industrial and automation control applications.
