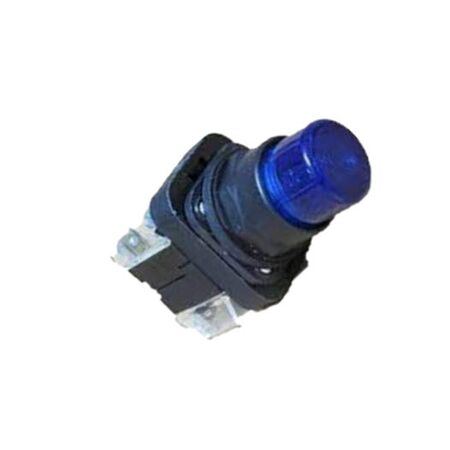

Illuminated Momentary Push Button | 30.5 mm Diameter | Blue Incandescent | Type 4/4X/13 Rated | by Allen-Bradley
The Illuminated Momentary Push Button by Allen-Bradley features a 30.5 mm diameter and blue incandescent illumination, making it perfect for industrial control panels and automation systems. Designed for harsh environments with a Type 4/4X/13 rating, this push button ensures reliable operation with a standard contact configuration of 1 Normally Open (NO) and 1 Normally Closed (NC). Built from durable plastic, it’s ideal for machinery operation and requires professional installation for safety compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Button Diameter: 30.5 mm
- Contact Type: Momentary
- Illumination: Incandescent, full voltage 24V AC/DC
- Material: Plastic
- Protection Rating: Type 4/4X/13
- Contact Configuration: 1 Normally Open (NO), 1 Normally Closed (NC)
- Extended Head without Guard
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.1 kg
Key Features
- 30.5 mm momentary contact push button
- Illuminated with blue color
- Plastic construction
- Type 4/4X/13 rated for harsh environments
- Extended head without guard
- Standard contact configuration: 1 NO 1 NC
- Full voltage operation at 24V AC/DC
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial control panels
- Machinery operation
- Automation systems requiring momentary contact switches
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable plastic construction reduces need for frequent replacements
- Energy-efficient incandescent illumination
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800HQRB24B Illuminated Momentary Push Button is available for immediate purchase, ideal for industrial and automation control applications.
