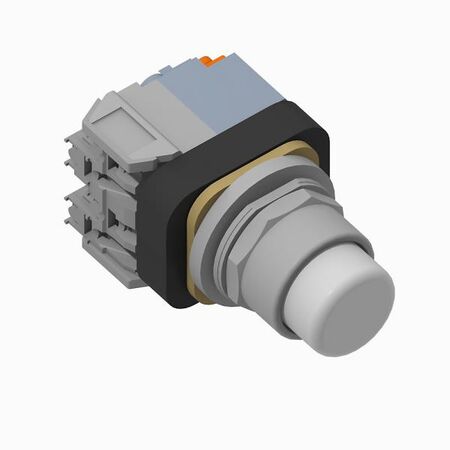

Illuminated Momentary Push Button | 30.5 mm Diameter | Type 4/13 Rated | by Allen-Bradley
The Illuminated Momentary Push Button is designed for industrial control applications, featuring a 30.5 mm diameter and momentary contact operation. With a Type 4/13 rating for protection against dust and water, this durable metal push button ensures reliable performance in automation systems and machinery operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Button Diameter: 30.5 mm
- Contact Type: Momentary
- Illumination: Transformer/full voltage incandescent
- Voltage Rating: 120V AC 50/60 Hz
- Contact Configuration: 1 Normally Open (NO), 1 Normally Closed (NC)
- Protection Rating: Type 4/13
- Terminal Guards: Included
- Extended Head: Without guard
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.2 kg
Key Features
- 30.5 mm diameter push button
- Momentary contact operation
- Illuminated button for visibility
- Metal construction for durability
- Type 4/13 rated for protection against dust and water
- Guards on terminals for safety
- Extended head without guard
- Transformer/full voltage incandescent illumination
- Transformer rated for 120V AC 50/60 Hz
- Standard contact configuration: 1 NO 1 NC
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Industrial control panels
- Machinery operation
- Automation systems requiring momentary contact switches
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal construction reduces replacement frequency and waste
- Illumination reduces energy consumption compared to non-illuminated alternatives
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TCPB16W Illuminated Momentary Push Button is available for immediate purchase, ideal for industrial and automation control applications.
