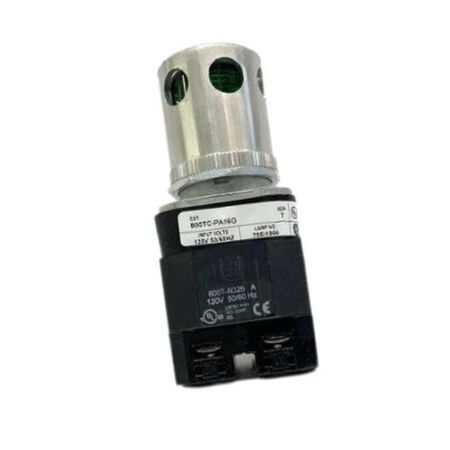

Illuminated Momentary Push Button | 30.5 mm Diameter | Type 4/13 Rated | Transformer 120V AC | by Allen-Bradley
The Illuminated Momentary Push Button is designed for industrial control applications, featuring a 30.5 mm diameter and momentary contact functionality. Built with durable metal and a Type 4/13 rating, it ensures safety and reliability in harsh environments. Ideal for machinery operation and automation systems, this push button includes terminal guards and transformer-rated incandescent illumination for clear visibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Button Diameter: 30.5 mm
- Contact Type: Momentary contact
- Illumination: Transformer/full voltage incandescent
- Voltage Rating: Transformer - 120V AC 50/60 Hz
- Material: Metal
- Protection Rating: Type 4/13
- Terminal Guards: Included
- Contact Configuration: 1 NO, 1 NC
- Extended Head with Guard: Yes
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.2 kg
Key Features
- 30.5 mm illuminated momentary contact push button
- Metal construction with Type 4/13 rating for harsh environments
- Guards on terminals for safety
- Extended head with guard to prevent accidental activation
- Transformer/full voltage incandescent illumination
- Transformer rated for 120V AC 50/60 Hz
- Standard contact configuration: 1 Normally Open (NO) and 1 Normally Closed (NC)
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection to control systems.
Applications
- Industrial control panels
- Machinery operation and control
- Automation systems requiring momentary contact switches
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal construction reduces need for frequent replacements, minimizing waste
- Energy-efficient incandescent illumination for clear visibility with low power consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TCPA16G Illuminated Momentary Push Button is available for immediate purchase, ideal for industrial and automation control panel applications.
