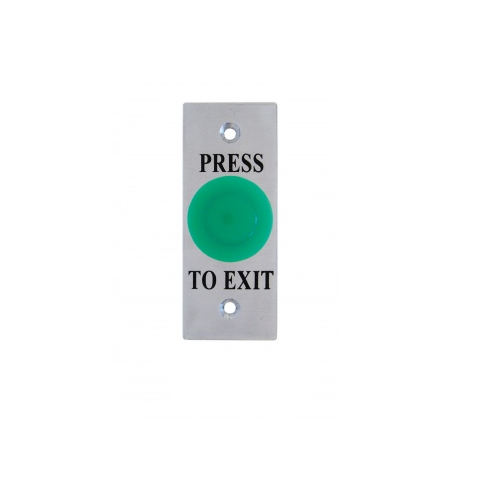

Illuminated Mushroom Exit Button Stainless Steel Green LED Ness

BRAND: Ness
SKU: 101-115
$52.80 List price: $70.40
+ −
30 Days Return Electricians Unlock Trade Access
Ness illuminated mushroom exit button features stainless steel construction, a green LED and isolated contacts. Ideal for access control installs.

Alternatively Known As: Illuminated Exit Button, Green LED Mushroom Exit Button, REX Button, Push-to-Exit Mushroom Button

Technical Specifications
  • Product Code: 101-114
  • Button Type: Big mushroom request-to-exit button
  • Contact Configuration: 1 x normally open and 1 x normally closed, isolated
  • Switch Action: Momentary
  • LED Supply: 12V DC, 12mA
  • Maximum Current: 10A at 12V or 24V DC
  • Minimum Current: 5mA
  • Contact Resistance: ≤50mΩ
  • Insulation Resistance: >100MΩ
  • Electrical Life: 50,000 cycles
  • Mechanical Life: 1,000,000 cycles
  • Button Colour: Green
  • Faceplate Material: Stainless steel
  • Ingress Protection: Not stated by manufacturer
  • Dimensions (H x L x W): 115mm x 70mm x 53mm
  • Weight: 0.25 kg
Key Features
  • Green LED illumination for clear button visibility
  • Large mushroom-style button for request-to-exit operation
  • Isolated normally open and normally closed contacts
  • Momentary switching operation
  • Stainless steel construction for high-use access-control installations
  • Rated for 12V or 24V DC access-control circuits
Professional Installation Requirements
  • Installation should be completed by a suitably qualified access-control or electrical technician. Connect the 12V DC LED and isolated contacts according to the access-control system manufacturer's wiring instructions and applicable installation requirements.
Applications
  • Access-control doors
  • Request-to-exit systems
  • Electric strikes and electromagnetic lock release circuits
  • Commercial and industrial security entrances
  • Internal doors requiring a clearly visible illuminated exit control
Environmental Benefits
  • Stainless steel construction is durable and recyclable at end of service life
  • LED illumination uses low electrical power compared with conventional lamps
  • Long mechanical life can reduce replacement frequency and product waste
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. Australian Consumer Law rights also apply.

Available Now

Available through Ness Corporation and authorised Australian security and access-control distributors.
