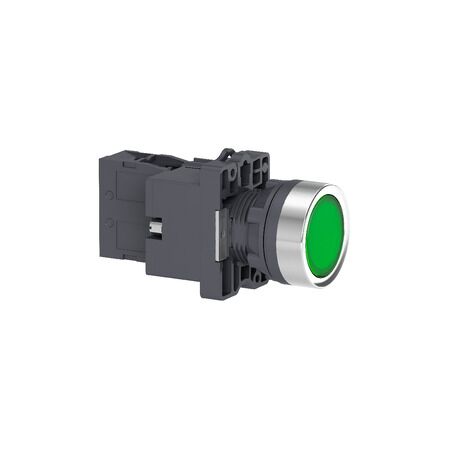

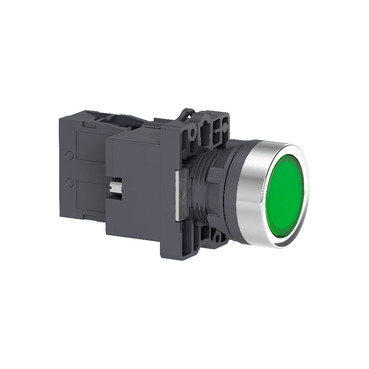

Illuminated Push Button 24VAC/DC | Green LED | 1NO Contact | IP66 Rated | @Pack of 1 | by Clipsal
The Illuminated Push Button 24VAC/DC features a vibrant green LED for clear status indication, making it ideal for industrial control panels and automation systems. With a robust 1NO contact configuration and IP66 rating, this button is built to withstand harsh environments while ensuring reliable operation. Perfect for machinery start/stop stations and building management systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Illuminated Push Button 24VAC/DC | Green LED | 1NO Contact | IP66 Rated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXA2EW33B1
Alternatively Known As: Green illuminated push button, 24V push button switch, Clipsal SCHXA2EW33B1, industrial control button, 1NO illuminated switch
Technical Specifications
- Supply Voltage: 24VAC/DC
- Contact Configuration: 1 Normally Open (1NO)
- Illumination: Green LED
- Mounting Diameter: 22mm
- Front Bezel Material: Plastic
- Ingress Protection: IP66 (front)
- Mechanical Life: 5,000,000 cycles
- Electrical Life: 1,000,000 cycles
- Dimensions (H x L x W): 50mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- Illuminated green actuator for clear status indication
- Operates on 24VAC/DC supply voltage
- 1 Normally Open (1NO) contact configuration
- Robust design for industrial environments
- Easy installation with standard 22mm mounting diameter
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with safety standards and correct wiring.
Applications
- Industrial control panels
- Machinery start/stop stations
- Automation systems
- Building management systems
- Elevator and lift controls
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long-life LED illumination reduces maintenance and energy consumption.
- Durable construction minimizes replacement frequency and waste.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Illuminated Push Button 24VAC/DC 1NO Green SCHXA2EW33B1 is available for immediate purchase. Ideal for industrial control panels, automation systems, and machinery applications.
