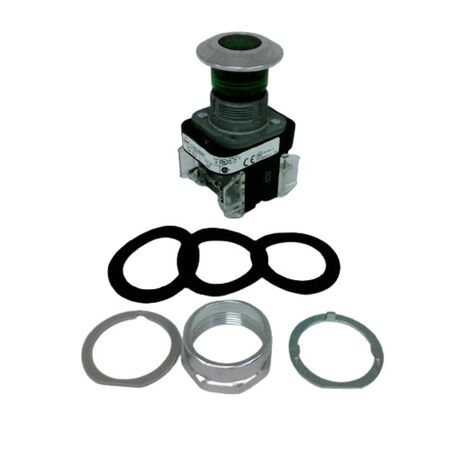

Illuminated Push Button | 30.5 mm Diameter | 3-Position Push-Pull Operation | Green Metal Mushroom Head | by Allen-Bradley
The Illuminated Push Button from Allen-Bradley features a 30.5 mm diameter and a 3-position push-pull operation, making it ideal for industrial control panels and automation systems. With its durable metal mushroom head and Type 4/13 protection rating, this button ensures reliable performance in demanding environments, while the incandescent illumination at 120V AC/DC provides clear visibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 30.5 mm
- Operation: 3-position push-pull (momentary-maintained-momentary)
- Illumination: Incandescent, full voltage 120V AC/DC
- Material: Metal mushroom head
- Protection rating: Type 4/13
- Contact configuration: 1 Normally Closed (NC), 1 Normally Open (NO)
- Color: Green
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.2 kg
Key Features
- 30.5 mm diameter push button
- 3-position push-pull operation
- Illuminated metal mushroom head
- Type 4/13 rated for protection against dust and water
- Momentary-maintained-momentary switching
- Incandescent illumination at full voltage 120V AC/DC
- Green color for easy identification
- Standard contact configuration: 1 Normally Closed (NC) and 1 Normally Open (NO)
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery operation interfaces
- Automation systems requiring push-pull control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal construction reduces replacement frequency and waste
- Incandescent illumination designed for efficient full voltage operation
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TFXNQ10GA7 Illuminated Push Button is available for immediate purchase, ideal for industrial and automation control applications.
