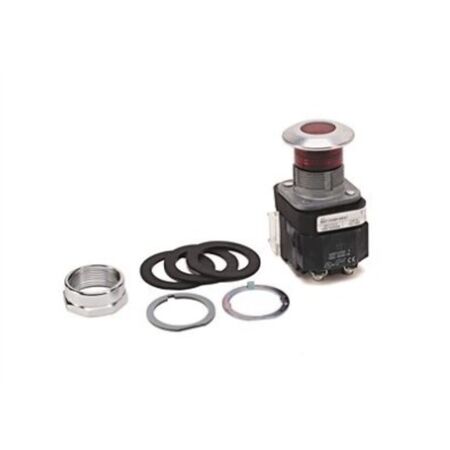

Illuminated Push Button | 30.5 mm Mushroom Head | 3-Position Operation | Red Color | by Allen-Bradley
The Illuminated Push Button features a 30.5 mm mushroom head and a versatile 3-position push-pull operation, making it ideal for industrial control panels and automation systems. With incandescent illumination at 24V AC/DC and a durable metal construction rated for Type 4/13 environments, this button ensures reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Button Diameter: 30.5 mm
- Operation: 3-position push-pull (momentary-maintained-momentary)
- Illumination: Incandescent, full voltage 24V AC/DC
- Color: Red
- Contacts: 1 Normally Closed (NC), 1 Normally Open (NO)
- Enclosure Rating: Type 4/13
- Head Style: Mushroom
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.3 kg
Key Features
- 30.5 mm mushroom head push-pull button
- 3-position: momentary-maintained-momentary
- Illuminated with incandescent full voltage 24V AC/DC
- Metal construction suitable for Type 4/13 environments
- Standard red color with 1 normally closed and 1 normally open contact
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery operation interfaces
- Automation systems requiring push-pull control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal construction reduces replacement frequency and waste.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TFXNQ24RA7 Illuminated Push Button is available for immediate purchase, ideal for industrial and automation control applications.
