Illuminated Push Button Head | 22mm Green Flush | IP69K Rated | Spring Return by Clipsal
Illuminated push button head with 22mm mounting and green flush design—ideal for industrial control panels. Built for durability with IP69K rating and 10 million cycle lifespan, compatible with universal LED.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

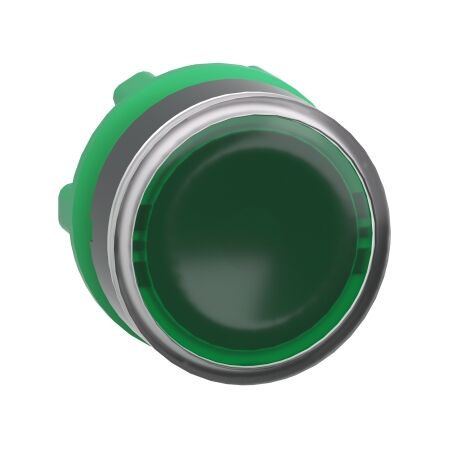

Product Name/Title: Harmony XB5, Head for illuminated push-button, plastic, green flush, 22mm, universal LED, spring return, plain lens
Brand: Clipsal
SKU: ZB5AW333
Alternatively Known As: Illuminated Push Button Head, Harmony XB5 Push Button, Green Push Button
Technical Specifications
- Type: Head for illuminated push-button
- Mounting diameter: 22 mm
- Shape: Round
- Operator type: Spring return
- Operator profile: Green flush, unmarked
- IP Rating: IP66, IP67, IP69, IP69K
- IK Rating: IK05
- Mechanical durability: 10 million cycles
- Ambient temperature for operation: -40 to 70 °C
- Vibration resistance: 5 gn
- Shock resistance: 30 gn
- Dimensions (H x L x W): 29mm x 30mm x 29mm
- Weight: 0.017 kg
Key Features
- IP66, IP67, IP69, and IP69K rated for high protection against dust and water.
- Mechanical durability of 10 million cycles.
- Compatible with universal LED.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Control panels, machinery interfaces
- Commercial: Equipment control in various settings
Standards & Compliance
- Complies with IEC 60947-5-4 and other relevant standards.
Environmental Benefits
- Packaging made with recycled cardboard.
- Green Premium product status.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB5 Head for illuminated push-button is available now for immediate purchase. Ideal for industrial control applications.
