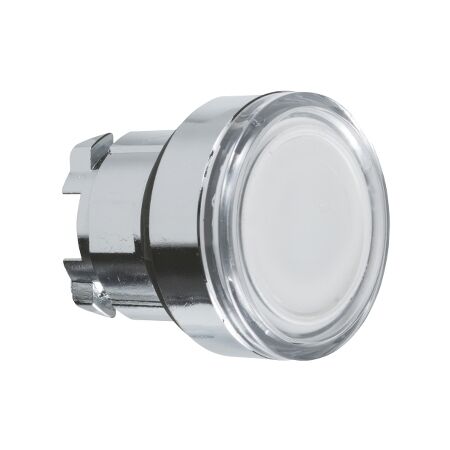

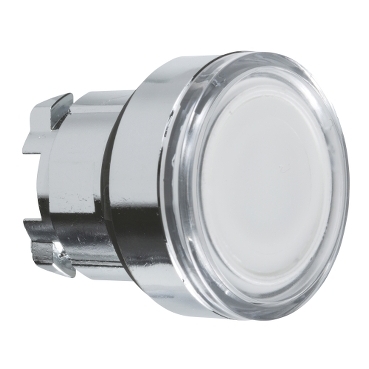

Illuminated Push Button Head | 22mm Diameter | IP66/IP67/IP69K Rated | Spring Return Mechanism | by Clipsal
The Illuminated Push Button Head is designed for enhanced visibility in industrial control panels, featuring a 22mm diameter for standard cutouts and robust metal construction. With an IP66/IP67/IP69K rating, it's perfect for automation systems and electrical control cabinets, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Illuminated Push Button Head | 22mm Diameter | IP66/IP67/IP69K Rated | Spring Return Mechanism | by Clipsal
Brand: Clipsal
SKU: SCHZB4BW31
Alternatively Known As: Harmony XB4 illuminated push button, 22mm push button head, Clipsal white illuminated button, SCHZB4BW31 control button
Technical Specifications
- Type: Illuminated push button head
- Range: Harmony XB4
- Mounting diameter: 22mm
- Material: Metal
- Lens color: White
- Lens type: Plain
- Illumination: For BA9s bulb (not included)
- Operation: Spring return (momentary)
- Front mounting: Flush
- Degree of protection: IP66, IP67, IP69, IP69K (front face)
- Operating temperature: -40°C to +70°C
- Dimensions (H x L x W): 29mm x 40mm x 29mm
- Weight: 0.1 kg
Key Features
- Flush, illuminated push button head for enhanced visibility
- 22mm diameter for standard panel cutouts
- White plain lens for BA9s bulb
- Spring return mechanism for momentary operation
- Robust metal construction for durability
- Part of the Harmony XB4 range
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with safety standards and correct panel integration.
Applications
- Industrial control panels
- Machinery operation stations
- Automation systems
- Electrical control cabinets
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long-lasting design reduces replacement frequency and waste
- Compatible with energy-efficient BA9s LED bulbs
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal SCHZB4BW31 Illuminated Push Button Head is available for immediate purchase. Ideal for industrial control panels and automation systems.
