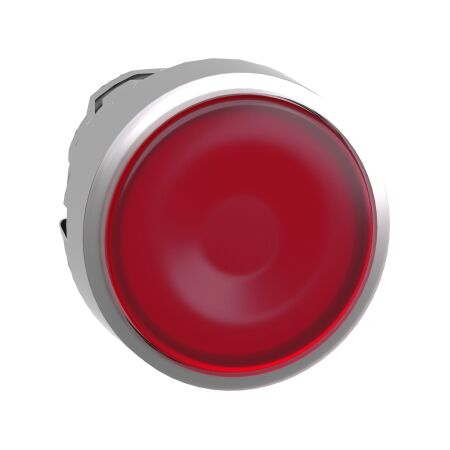

Illuminated Push Button Head | Red Flush | 22mm Universal LED | Spring Return by Clipsal
Illuminated push button head with red flush design and 22mm universal LED—ideal for industrial control panels and commercial equipment. Built for durability with IP66, IP67, IP69K ratings and 10 million cycle lifespan.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Harmony XB4, Head for illuminated push-button, metal, red flush, 22mm, universal LED, spring return, plan lens, unmarked
Brand: Clipsal
SKU: ZB4BW343
Alternatively Known As: Illuminated Push Button Head, Harmony XB4 Push Button, Red Push Button
Technical Specifications
- Design: Harmony XB4
- Product type: Head for illuminated push-button
- Compatibility: Universal LED
- Bezel material: Chromium plated metal
- Mounting diameter: 22.5 mm
- Shape: Round
- Operator profile: Red flush, unmarked
- Resistance to high pressure washer: 7000000 Pa at 55 °C
- Overvoltage category: Class I conforming to IEC 60536
- Vibration resistance: 5 gn (f= 2-500 Hz)
- Shock resistance: 30 gn (duration = 18 ms)
- Dimensions (H x L x W): 29mm x 30mm x 29mm
- Weight: 0.026 kg
Key Features
- IP66, IP67, IP69K rated for high protection against dust and water.
- Mechanical durability of 10 million cycles.
- Spring return operator with a red flush design.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Control panels, machinery interfaces
- Commercial: Equipment control, automation systems
Standards & Compliance
- Complies with IEC 60947-5-5 and other relevant standards.
Environmental Benefits
- Packaging made with recycled cardboard.
- Green Premium product status.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB4 Head for illuminated push-button is available now for immediate purchase. Ideal for industrial and commercial applications.
