Illuminated Push Button Head | Universal LED | Spring Return | IP69K Rated by Clipsal
Illuminated push button head with universal LED compatibility and spring return—ideal for industrial control panels and commercial automation. Built for durability, with IP69K rating for high protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

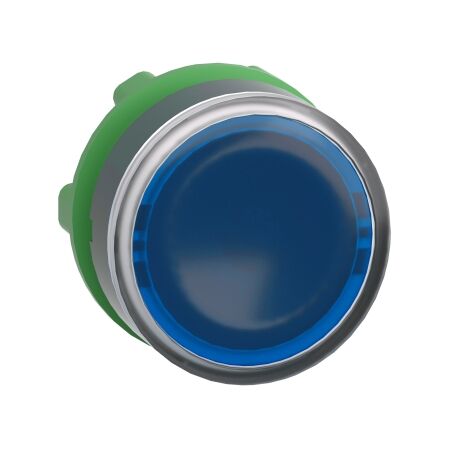

Product Name/Title: Harmony XB5, Head for illuminated push-button, plastic, blue flush, 22mm, universal LED, spring return, plain lens
Brand: Clipsal
SKU: ZB5AW363
Alternatively Known As: Illuminated Push Button Head, Harmony XB5 Push Button, Blue Push Button Head
Technical Specifications
- Mechanical durability: 10,000,000 cycles
- Ambient air temperature for operation: -40...70 °C
- IP Rating: IP66, IP67, IP69K
- IK Rating: IK05
- Overvoltage category: Class II
- Vibration resistance: 5 gn (f= 2-500 Hz)
- Shock resistance: 30 gn (duration = 18 ms)
- Dimensions (H x L x W): 29mm x 30mm x 22mm
- Weight: 0.017 kg
Key Features
- Illuminated push-button head with universal LED compatibility.
- Spring return mechanism for reliable operation.
- IP66, IP67, IP69K rated for high protection against dust and water.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Control panels, machinery, and equipment
- Commercial: Automation systems and lighting controls
Standards & Compliance
- Complies with IEC 60947-5-4 and other relevant standards.
Environmental Benefits
- Packaging made with recycled cardboard and without single-use plastic.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB5 Head for illuminated push-button is available now for immediate purchase. Ideal for industrial and commercial applications.
