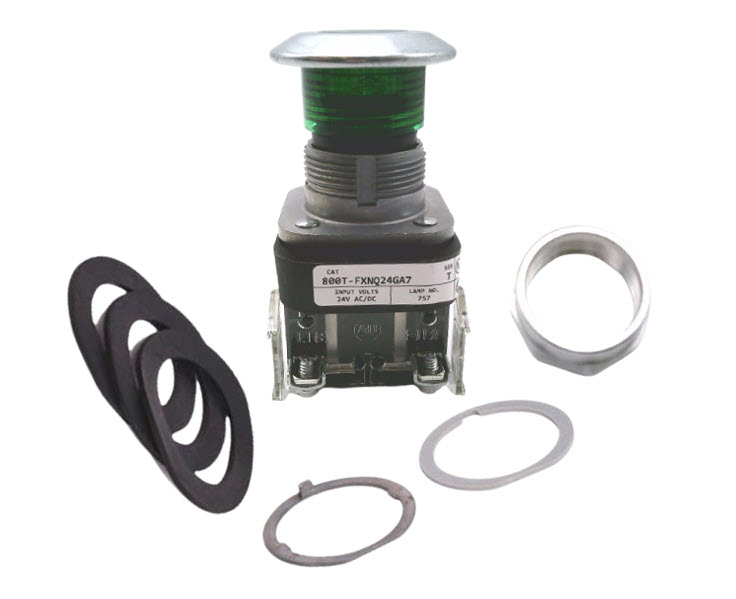

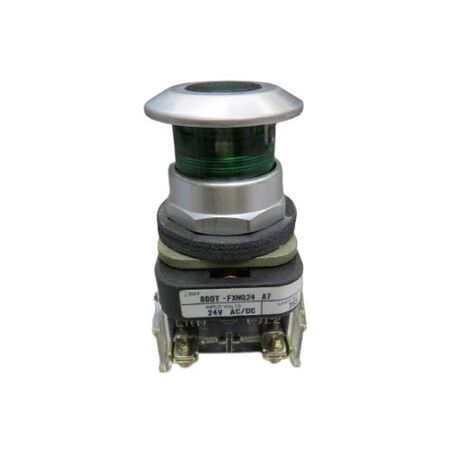

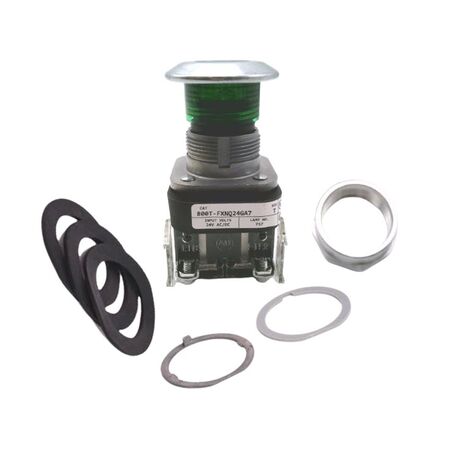

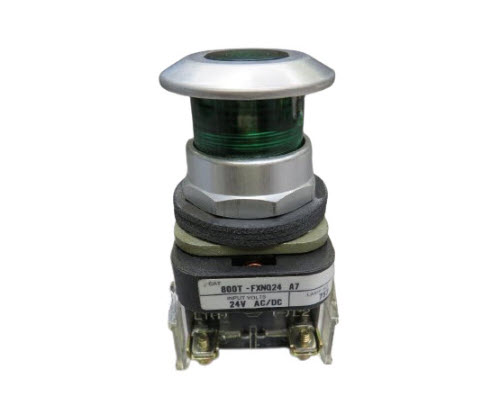

Product Name/Title: Allen-Bradley 800TFXNQ24GA7 Illuminated Push Button
Brand: Allen-Bradley
SKU: 800TFXNQ24GA7
Alternatively Known As: Illuminated Push Button Switch, Mushroom Head Push Button, 3-Position Push-Pull Button
Technical Specifications
- Diameter: 30.5 mm
- Operation: 3-position push-pull (momentary-maintained-momentary)
- Illumination: Incandescent, full voltage 24V AC/DC
- Material: Metal mushroom head
- Enclosure rating: Type 4/13
- Contact configuration: 1 NC, 1 NO
- Color: Green
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.2 kg
Key Features
- 30.5 mm diameter push button
- 3-position push-pull operation
- Illuminated metal mushroom head
- Type 4/13 enclosure rating for protection against dust and water
- Momentary-maintained-momentary switching
- Incandescent illumination at full voltage 24V AC/DC
- Standard green color
- Contact configuration: 1 Normally Closed (NC) and 1 Normally Open (NO)
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper integration into control systems.
Applications
- Industrial control panels
- Machinery operation interfaces
- Automation systems requiring push-pull control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal construction reduces replacement frequency and waste
- Low power incandescent illumination for energy efficiency
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TFXNQ24GA7 Illuminated Push Button is available for immediate purchase, ideal for industrial and automation control applications.
