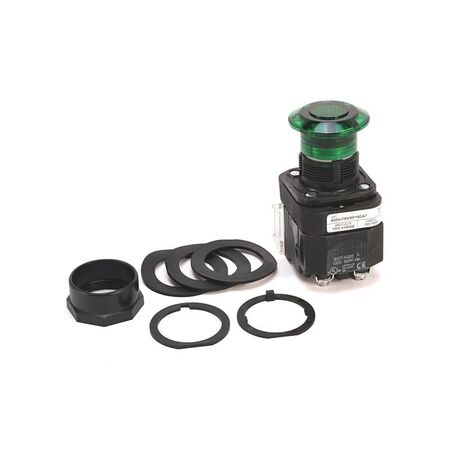

Illuminated Push Button Switch | 30.5 mm Diameter | 3-Position Operation | Type 4/4X/13 Rated | by Allen-Bradley
The Illuminated Push Button Switch from Allen-Bradley features a 30.5 mm diameter and a versatile 3-position push-pull operation, making it ideal for industrial control panels and automation systems. With an amber incandescent illumination and robust Type 4/4X/13 protection rating, this switch ensures clear visibility and durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Button Diameter: 30.5 mm
- Operation: 3-position push-pull (momentary-maintained-maintained)
- Illumination: Amber incandescent transformer, 120V AC 50/60 Hz
- Material: Plastic mushroom head
- Protection Rating: Type 4/4X/13
- Contacts: 1 Normally Closed (NC), 1 Normally Open (NO)
- Dimensions (H x L x W): 35mm x 40mm x 35mm
- Weight: 0.2 kg
Key Features
- 30.5 mm push button with 3-position push-pull operation
- Illuminated plastic mushroom head for clear visibility
- Type 4/4X/13 rated for robust protection
- Momentary-maintained-maintained switching
- Incandescent transformer - 120V AC 50/60 Hz
- Amber standard illumination
- 1 Normally Closed (NC) and 1 Normally Open (NO) contact
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper integration into control systems.
Applications
- Industrial control panels
- Machinery operation interfaces
- Automation systems requiring push-pull control
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption incandescent transformer
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800HFRXMP16AA7 Illuminated Push Button is available for immediate purchase, ideal for industrial and automation control panel applications.
