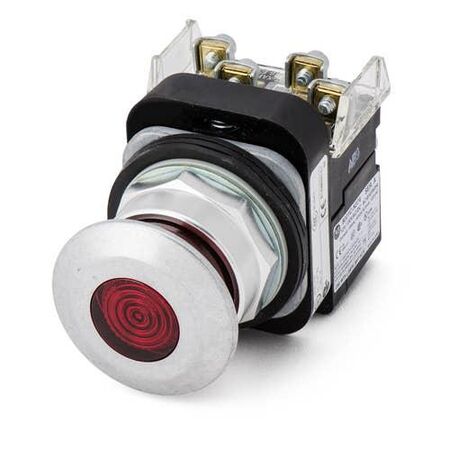

Illuminated Push Button Switch | 30.5 mm Mushroom Head | 3-Position Operation | 120V AC | by Allen-Bradley
The Illuminated Push Button Switch features a 30.5 mm mushroom head and a versatile 3-position operation, making it ideal for industrial control panels and automation systems. With its durable metal construction and incandescent illumination at 120V AC, this push-pull button ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Button Diameter: 30.5 mm
- Operation: 3-position (momentary-maintained-momentary)
- Illumination: Incandescent with transformer, 120V AC 50/60 Hz
- Material: Metal housing
- Terminal Guards: Type 4/13
- Contacts: 1 Normally Closed (NC), 1 Normally Open (NO)
- Head Type: Mushroom, push-pull
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.3 kg
Key Features
- 30.5 mm mushroom head push-pull button
- 3-position operation: momentary-maintained-momentary
- Illuminated with incandescent transformer (120V AC 50/60 Hz)
- Metal construction with Type 4/13 guards on terminals
- Standard configuration: 1 Normally Closed (NC) and 1 Normally Open (NO) contact
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
- Industrial control panels
- Machinery operation interfaces
- Automation systems requiring push-pull control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal construction reduces replacement frequency and waste
- Incandescent illumination designed for efficient operation at 120V AC
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TCFXNP16XA7 Illuminated Push Button is available for immediate purchase, ideal for industrial and automation control panel applications.
