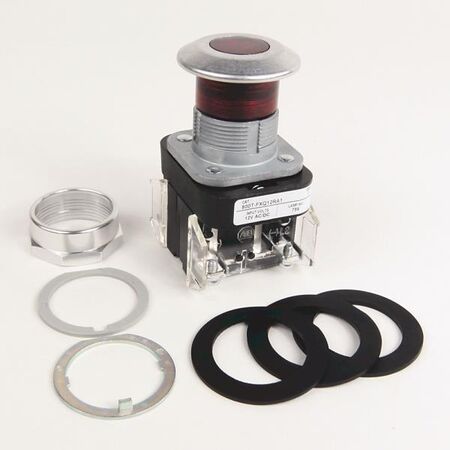

Illuminated Push Button Switch | Mushroom Head | 2-Position Operation | Type 4/13 Protection | by Allen-Bradley
The Illuminated Push Button Switch by Allen-Bradley features a mushroom head design and 2-position push-pull operation, making it ideal for industrial control panels and automation systems. With its durable metal construction and Type 4/13 protection, this button ensures safety and reliability in machinery operation. The incandescent illumination at 24V AC/DC provides clear visibility, perfect for environments requiring push-pull control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Push Button
- Operation: 2-position push-pull/twist
- Head: Mushroom head, illuminated
- Material: Metal
- Protection: Type 4/13
- Terminal Guards: Included
- Illumination: Incandescent, full voltage 24V AC/DC
- Contact Configuration: 1 Normally Closed, 1 Normally Open
- No Cap Included
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.3 kg
Key Features
- 2-position push-pull operation
- Illuminated mushroom head for clear visibility
- Metal construction with Type 4/13 protection
- Guards on terminals for safety
- Incandescent illumination at full voltage 24V AC/DC
- Push-pull/twist functionality
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper operation.
Applications
- Industrial control panels
- Machinery operation and safety
- Automation systems requiring push-pull control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal construction reduces replacement frequency and waste
- Low power incandescent illumination for energy efficiency
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TCFXTQ24XA1 Illuminated Push Button is available for immediate purchase, ideal for industrial and automation control applications.
