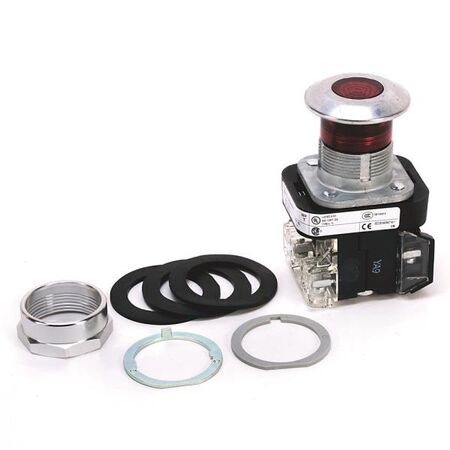

Illuminated Push-Pull Mushroom Head Push Button | 2-Position Operation | Type 4/13 Rated | by Allen-Bradley
The Illuminated Push-Pull Mushroom Head Push Button is designed for industrial control applications, featuring a durable metal construction and a clear illuminated mushroom head for visibility. With a 2-position push-pull operation and Type 4/13 protection rating, it ensures safety and reliability in automation systems. Ideal for machinery operation and control panels, this push button is built to withstand harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Push button, 2-position push-pull
- Head: Mushroom head, illuminated
- Material: Metal
- Protection rating: Type 4/13
- Terminal guards included
- Illumination: Incandescent, full voltage 24V AC/DC
- Contact configuration: 1 Normally Closed, 1 Normally Open
- Diameter: 30.5 mm
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.3 kg
Key Features
- 2-position push-pull operation
- Illuminated mushroom head for clear visibility
- Metal construction for durability
- Type 4/13 rated for protection against dust and water
- Guards on terminals for safety
- Incandescent illumination with full voltage 24V AC/DC
- Standard contact configuration: 1 Normally Closed, 1 Normally Open
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
- Industrial control panels
- Machinery operation and safety
- Automation systems requiring illuminated push buttons
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable metal construction reduces replacement frequency and waste
- Incandescent illumination designed for efficient low voltage operation
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TCFXQ24RA1 Illuminated Push-Pull Mushroom Head Push Button is available for immediate purchase, ideal for industrial control and automation applications.
