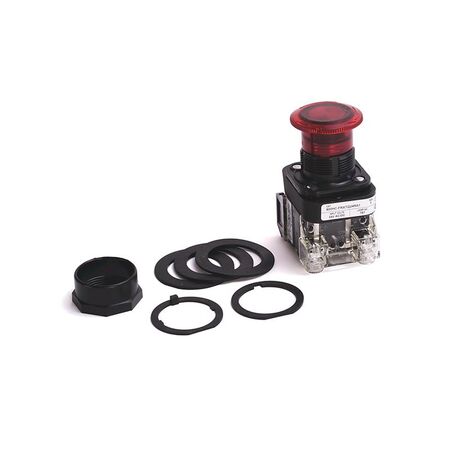

Illuminated Push-Pull Mushroom Head Push Button | 30.5 mm Head | 24V AC/DC | Type 4/4X/13 Rated | by Allen-Bradley

BRAND: Allen-Bradley
SKU: 800HCFRXTQ24RA5
$422.70 List price: $526.80
+ −
30 Days Return Delivery Options
The Illuminated Push-Pull Mushroom Head Push Button is designed for industrial control applications, featuring a 30.5 mm mushroom head and 2-position push-pull operation. With a robust Type 4/4X/13 protection rating and incandescent illumination, it ensures clear visibility and safety in machinery operation and emergency stop functions.
Technical Specifications
  • Type: Push button, 2-position
  • Head Size: 30.5 mm mushroom head
  • Operation: Push-pull/twist
  • Illumination: Incandescent lamp
  • Voltage: Full voltage 24V AC/DC
  • Material: Plastic
  • Protection Rating: Type 4/4X/13
  • Terminal Guards: Included
  • Color: Red
  • Contact Configuration: Standard - 2 NCLB
  • Dimensions (H x L x W): 40mm x 50mm x 40mm
  • Weight: 0.3 kg
Key Features
  • 2-position push-pull operation
  • 30.5 mm mushroom head design
  • Illuminated with incandescent lamp
  • Plastic construction with Type 4/4X/13 protection
  • Guards on terminals for safety
  • Push-pull/twist functionality
  • Full voltage 24V AC/DC operation
  • Red color for emergency or stop indication
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
  • Industrial control panels
  • Machinery operation and safety
  • Emergency stop and start functions
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable plastic construction reduces need for frequent replacements
  • Energy-efficient incandescent illumination for clear visibility
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 800HCFRXTQ24RA5 Illuminated Push-Pull Mushroom Head Push Button is available for immediate purchase, ideal for industrial control and safety applications.
