Illuminated Push-Pull Pushbutton | 30mm Diameter | NEMA 4/13 Rated | Red Button | by Allen-Bradley
Illuminated Push-Pull Pushbutton | 30mm Diameter | NEMA 4/13 Rated | Red Button | by Allen-Bradley
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

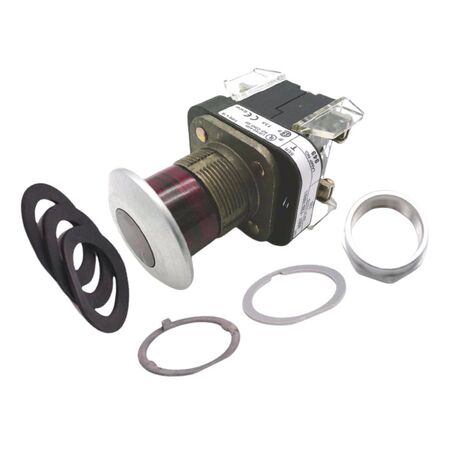

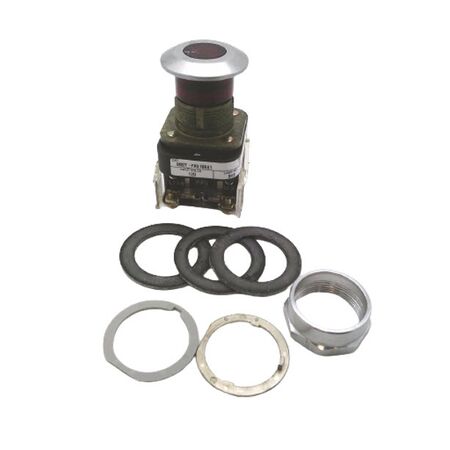

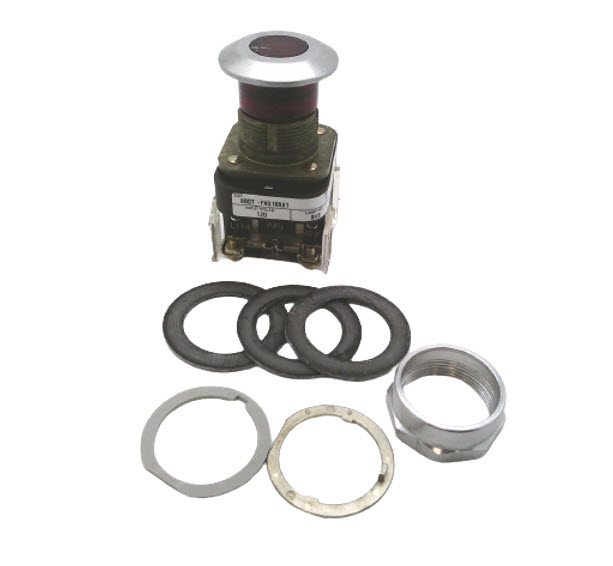

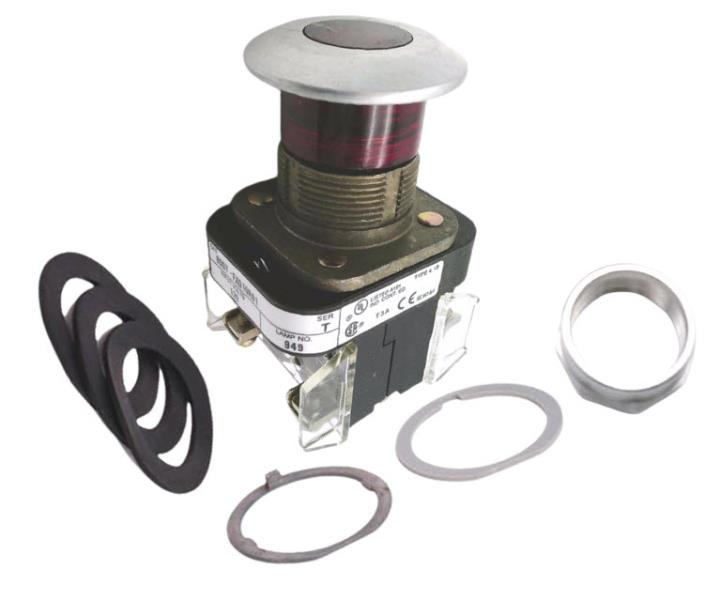

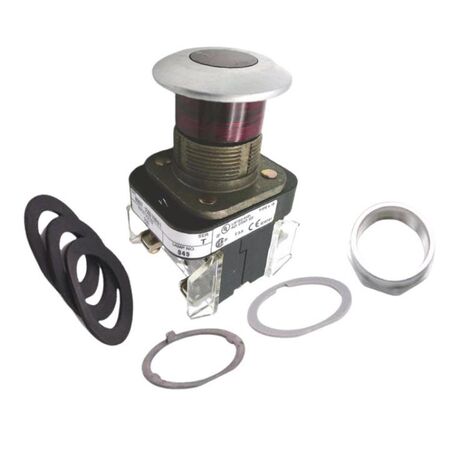

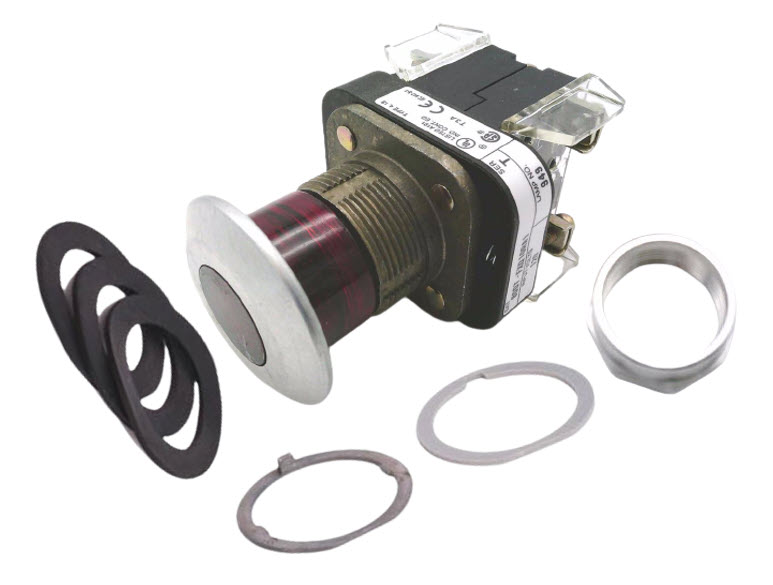

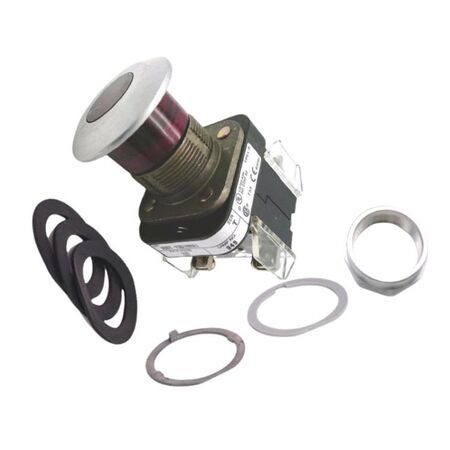

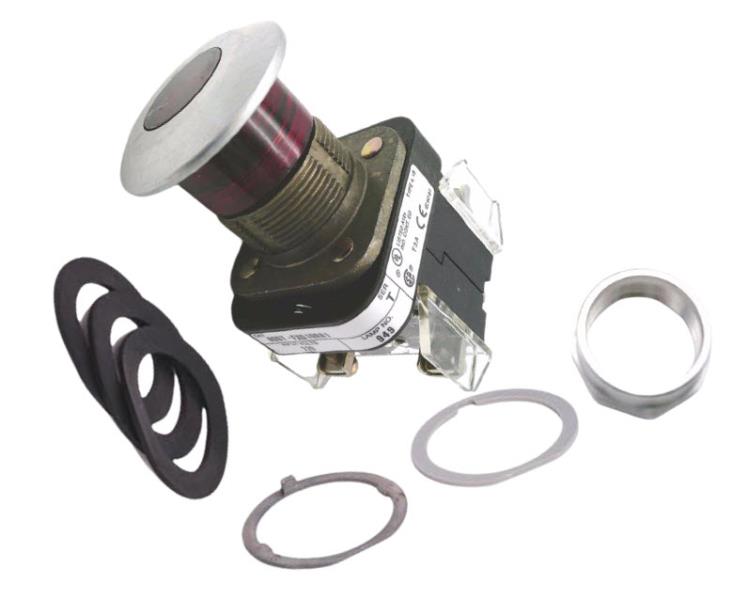

Product Name/Title: Allen-Bradley 800TFXQ10RA1 Illuminated Push-Pull Pushbutton
Brand: Allen-Bradley
SKU: 800TFXQ10RA1
Alternatively Known As: Illuminated Push-Pull Pushbutton, 30mm Pushbutton Switch, Allen-Bradley Control Button
Technical Specifications
- Operating Voltage: 120 VAC
- Button Type: Push-pull, maintained
- Button Diameter: 30 mm
- Contact Configuration: 1 normally open, 1 normally closed late break
- Protection Rating: NEMA 4/13
- Dimensions (H x L x W): 40mm x 50mm x 40mm
- Weight: 0.2 kg
Key Features
- 30 mm push-pull maintained pushbutton
- Illuminated red button for clear visibility
- Includes 1 normally open and 1 normally closed late break contact blocks
- NEMA 4/13 rated for protection against dust and water
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Industrial control panels
- Machinery operation and control
- Manufacturing automation systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TFXQ10RA1 Illuminated Push-Pull Pushbutton is available for immediate purchase, ideal for industrial and manufacturing control panel applications.
