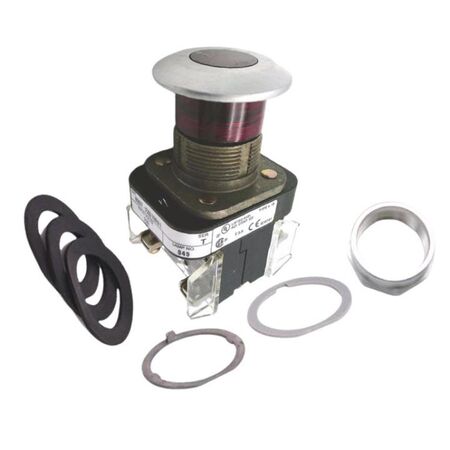

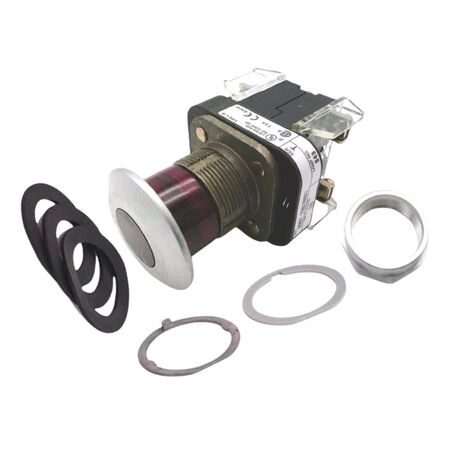

Illuminated Push-Pull Pushbutton | 30mm Diameter | NEMA 4/13 Rated | Red Button | by Allen-Bradley
The Illuminated Push-Pull Pushbutton is designed for industrial control panels, featuring a 30mm maintained pushbutton with a bright red illumination for clear visibility. Rated NEMA 4/13 for protection against dust and water, it includes both normally open and normally closed contact blocks, making it ideal for machinery operation and manufacturing automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating Voltage: 120 VAC
- Button Type: Push-pull, maintained
- Button Diameter: 30 mm
- Contact Configuration: 1 normally open, 1 normally closed late break
- Protection Rating: NEMA 4/13
- Dimensions (H x L x W): 40mm x 50mm x 40mm
- Weight: 0.2 kg
Key Features
- 30 mm push-pull maintained pushbutton
- Illuminated red button for clear visibility
- Includes 1 normally open and 1 normally closed late break contact blocks
- NEMA 4/13 rated for protection against dust and water
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Industrial control panels
- Machinery operation and control
- Manufacturing automation systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TFXQ10RA1 Illuminated Push-Pull Pushbutton is available for immediate purchase, ideal for industrial and manufacturing control panel applications.
