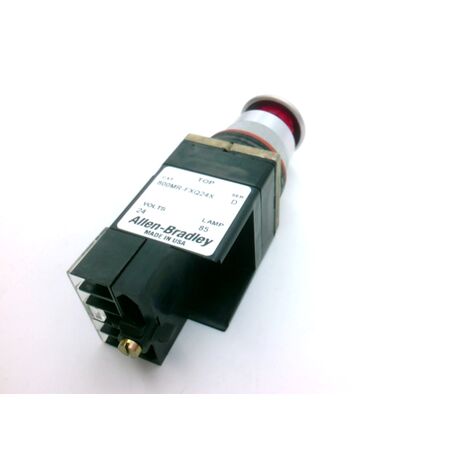

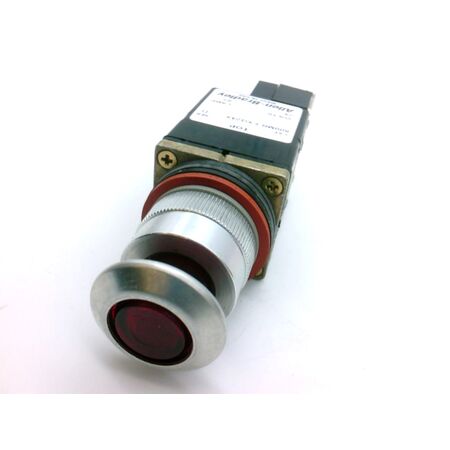

Illuminated Push-Pull Unit | 24V AC/DC | Standard Red Illumination | Maintained Operation | by Allen-Bradley
The Illuminated Push-Pull Unit is a 24V AC/DC switch designed for industrial control applications. With maintained operation and standard red illumination, it features 1 Normally Open and 1 Normally Closed contact for versatile use. Ideal for machinery operation and automation systems, this unit ensures easy wiring with stab terminals, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage: 24V AC/DC
- Contact Configuration: 1 NO, 1 NC
- Illumination: Standard red
- Terminal Type: Stab terminals
- Operation: Maintained push-pull
- Positions: 2
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.2 kg
Key Features
- Illuminated push-pull maintained switch
- 2 position operation
- Full voltage operation
- Standard red illumination
- 1 Normally Open (NO) and 1 Normally Closed (NC) contact
- Stab terminals for easy wiring
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial control panels
- Machinery operation control
- Automation systems requiring maintained push-pull switches
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption due to LED illumination
- Durable design reduces replacement frequency and waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800MRFXQ24RA Illuminated Push-Pull Unit is available for immediate purchase, ideal for industrial and automation control applications.
