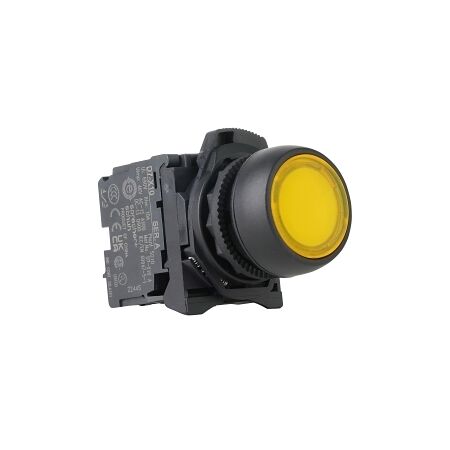

Illuminated Pushbutton 22.5 mm | Yellow Lens | 24V 1NO | IP65 Rated by NHP
Illuminated pushbutton with 22.5 mm diameter and yellow lens cap—ideal for industrial control panels and commercial equipment. Built for durability, with 24V operation and IP65/IP66/IP69K protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sprecher and Schuh D7 Pushbutton 22.5 mm Complete PLT MOM Flush Yellow Lens Cap Illuminated 24V 1NO
Brand: NHP
SKU: D7PLF5PN3WX10
Alternatively Known As: D7 Pushbutton, Illuminated Pushbutton, 22.5 mm Pushbutton Switch
Technical Specifications
- Number of contacts: 1 NO
- Supply voltage: 24 V
- Type of electric connection: Screw connection
- Material front ring: Plastic
- Max shock acceleration: 100 g
- Max vibration acceleration: 10 m/s²
- Max vibration frequency operational: 2000 Hz
- Suitable for illumination: Yes
- Hole diameter: 22.5 mm
- Dimensions (H x L x W): 29.6mm x 22.5mm x 22.5mm
- Weight: 0.2 kg
Key Features
- 22.5 mm pushbutton with a yellow lens cap for visibility.
- IP65/IP66/IP69K rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control panels, machinery operation
- Commercial: Equipment control, automation systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Long-lasting design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Pushbutton 22.5 mm Complete PLT MOM Flush Yellow Lens Cap Illuminated 24V 1NO is available now for immediate purchase. Ideal for industrial and commercial applications.
