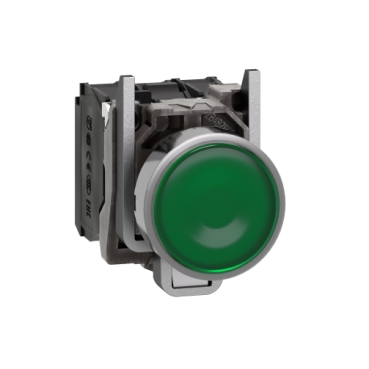

Illuminated Pushbutton | 22mm Diameter | Green LED | IP66 Rated | @Pack of 1 | by Clipsal
The Illuminated Pushbutton is a 22mm diameter control button featuring bright green LED illumination for clear status indication. Designed for industrial control panels and automation systems, it offers a robust plastic bezel and an IP66 rating for dust and water resistance, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Illuminated Pushbutton | 22mm Diameter | Green LED | IP66 Rated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXB4BW33B5
Alternatively Known As: Clipsal illuminated pushbutton, Schneider XB4BW33B5, 22mm green LED pushbutton, industrial control button, Clipsal control station button
Technical Specifications
- Actuator type: Illuminated pushbutton
- Mounting diameter: 22mm
- Illumination: Green LED
- Contact configuration: 1NO + 1NC
- Bezel material: Plastic
- IP rating: IP66
- Terminal type: Screw clamp
- Rated operational voltage: 24V AC/DC (LED)
- Mechanical durability: 1,000,000 cycles
- Dimensions (H x L x W): 30mm x 60mm x 30mm
- Weight: 0.1 kg
Key Features
- 22mm diameter illuminated pushbutton
- Green LED illumination for clear status indication
- 1 normally open (NO) + 1 normally closed (NC) contact configuration
- Robust plastic bezel for durability
- IP66 rated for dust and water resistance
- Easy installation with screw clamp terminals
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery start/stop stations
- Automation systems
- Building management systems
- Electrical control cabinets
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- LED illumination reduces energy consumption compared to traditional bulbs.
- Long operational life minimizes replacement waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHXB4BW33B5 Illuminated Pushbutton is available for immediate purchase. Ideal for industrial control panels, automation systems, and machinery applications.
