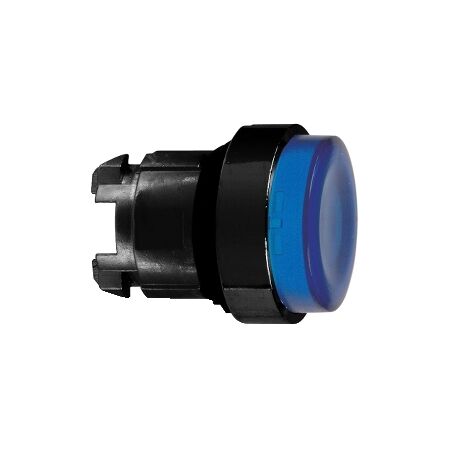

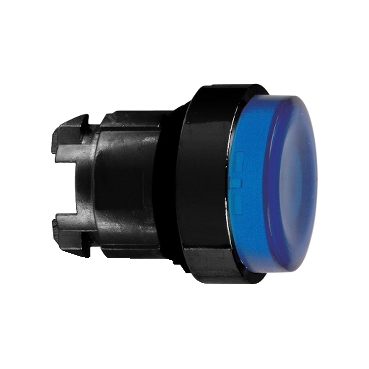

Illuminated Pushbutton HE | Blue Projecting Head | 22mm Diameter | Spring Return Mechanism | by Clipsal
The Illuminated Pushbutton HE is a blue projecting pushbutton head designed for seamless integration into industrial control panels and automation systems. With a 22mm diameter for standard cutouts and a spring return mechanism for momentary operation, this robust component is perfect for machinery operation stations and electrical switchboards, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Illuminated Pushbutton HE | Blue Projecting Head | 22mm Diameter | Spring Return Mechanism | by Clipsal
Brand: Clipsal
SKU: SCHZB4BW167
Alternatively Known As: Clipsal Harmony XB4 Illuminated Pushbutton, SCHZB4BW167, Blue Projecting Pushbutton Head, 22mm Illuminated Pushbutton, Clipsal Pushbutton Head
Technical Specifications
- Type: Illuminated pushbutton head
- Series: Harmony XB4
- Color: Blue
- Button type: Projecting
- Diameter: 22 mm
- Operation: Spring return (momentary)
- Illumination: BA9s bulb compatible
- Material: High-impact plastic and metal
- Mounting: Panel mount
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Blue projecting illuminated pushbutton head
- Ø22 mm diameter for standard panel cutouts
- Spring return mechanism for momentary operation
- Compatible with BA9s bulb for illumination
- Robust Harmony XB4 series design
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery operation stations
- Automation systems
- Electrical switchboards
- Manufacturing equipment
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long-lasting components reduce replacement frequency and waste.
- Energy-efficient illumination with BA9s bulb option.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Illuminated Pushbutton HE SCHZB4BW167 is available for immediate purchase. Ideal for industrial control panels, automation systems, and machinery operation stations.
