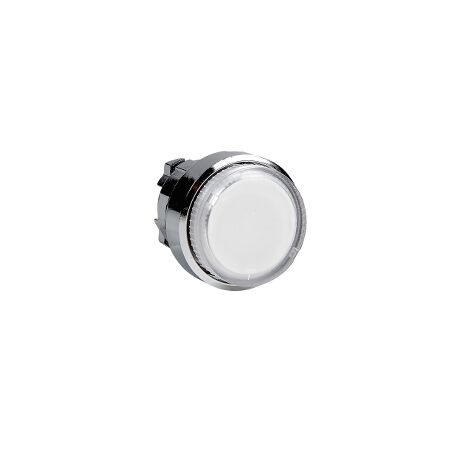

Illuminated Pushbutton HE | Clear Projecting Design | 22mm Diameter | Spring Return Mechanism | by Clipsal
The Illuminated Pushbutton HE is a clear projecting pushbutton head designed for seamless integration into industrial control panels and automation systems. With a robust 22mm diameter and spring return mechanism, it ensures reliable momentary operation. Compatible with BA9s bulbs for illumination, this pushbutton is built for durability and efficiency, making it ideal for machinery operation stations and electrical control cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Illuminated Pushbutton HE | Clear Projecting Design | 22mm Diameter | Spring Return Mechanism | by Clipsal
Brand: Clipsal
SKU: SCHZB4BW17
Alternatively Known As: Clipsal XB4 Illuminated Pushbutton, Harmony XB4 Pushbutton Head, SCHZB4BW17, 22mm Illuminated Pushbutton, Clear Projecting Pushbutton
Technical Specifications
- Type: Illuminated pushbutton head
- Series: Harmony XB4
- Mounting diameter: 22mm
- Button color: Clear
- Operation: Spring return (momentary)
- Illumination: BA9s bulb compatible
- Material: High-grade plastic and metal
- Ingress protection: IP66 (front face)
- Operating temperature: -40°C to +70°C
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Clear projecting illuminated pushbutton head
- 22mm diameter for standard panel cutouts
- Spring return mechanism for momentary operation
- Compatible with BA9s bulb for illumination
- Robust Harmony XB4 series design
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and correct panel integration.
Applications
- Industrial control panels
- Machinery operation stations
- Automation systems
- Electrical control cabinets
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long-lasting components reduce replacement frequency and electronic waste.
- Energy-efficient illumination with BA9s bulb option.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB4 Illuminated Pushbutton Head SCHZB4BW17 is available for immediate purchase. Ideal for industrial control panels, automation systems, and machinery operation stations.
