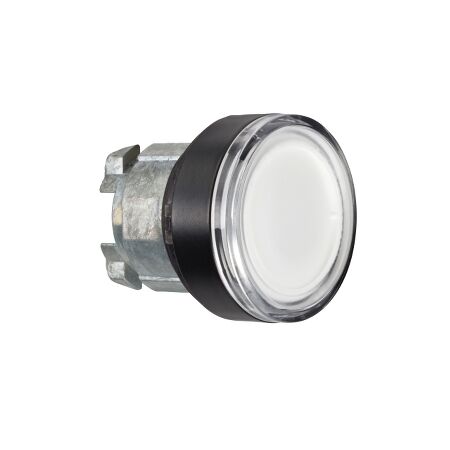

Illuminated Pushbutton HE | Harmony XB4 Series | Black Metal Bezel | White Projecting Actuator | @1 | by Clipsal
The Illuminated Pushbutton HE is a head for illuminated push buttons, designed for industrial control panels and automation systems. Featuring a durable black metal bezel and a clear white projecting actuator, it ensures visibility and reliability in machinery operation. Ideal for qualified electricians, this pushbutton is compatible with BA9s bulbs and offers a spring return mechanism for enhanced functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Illuminated Pushbutton HE | Harmony XB4 Series | Black Metal Bezel | White Projecting Actuator | @1 | by Clipsal
Brand: Clipsal
SKU: SCHZB4BW317
Alternatively Known As: Harmony XB4 Illuminated Pushbutton, SCHZB4BW317, Clipsal Pushbutton Head, 22mm Illuminated Pushbutton, Industrial Control Button
Technical Specifications
- Product type: Head for illuminated push button
- Series: Harmony XB4
- Bezel material: Black metal
- Actuator color: White
- Actuator type: Projecting
- Mounting diameter: 22mm
- Return type: Spring return
- Bulb type: BA9s (not included)
- Marking: Unmarked
- Dimensions (H x L x W): 40mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- Head for illuminated push button
- Harmony XB4 series
- Black metal bezel for durability
- White projecting actuator for clear visibility
- 22mm mounting diameter
- Spring return mechanism
- BA9s bulb compatible
- Unmarked actuator for flexible labeling
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with safety standards and correct operation.
Applications
- Industrial control panels
- Machinery operation stations
- Automation systems
- Electrical control cabinets
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long-lasting components reduce replacement frequency and waste.
- Energy-efficient illumination with BA9s bulb compatibility.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB4 Illuminated Pushbutton Head SCHZB4BW317 is available for immediate purchase. Ideal for industrial control panels and automation systems.
