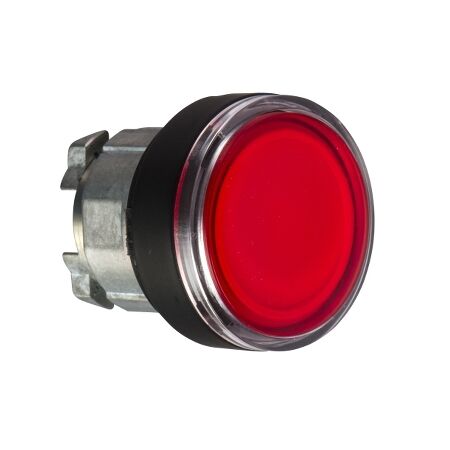

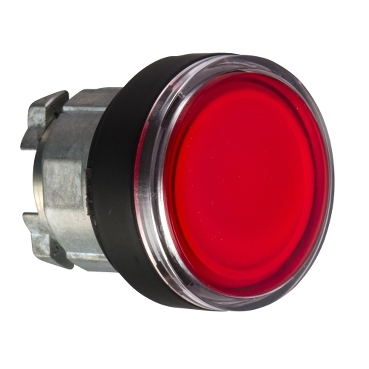

Illuminated Pushbutton HE | Red Color | Spring Return Mechanism | BA9s Bulb Compatible | by Clipsal
The Illuminated Pushbutton HE is a red flush pushbutton head designed for industrial control panels and automation systems. With a robust Harmony XB4 series design and a spring return mechanism, it ensures high visibility for operator feedback. Ideal for machinery operation stations and electrical control cabinets, this pushbutton is compatible with BA9s bulbs for energy-efficient illumination.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Illuminated Pushbutton HE | Red Color | Spring Return Mechanism | BA9s Bulb Compatible | by Clipsal
Brand: Clipsal
SKU: SCHZB4BW347
Alternatively Known As: Clipsal XB4 illuminated pushbutton, Harmony XB4 red pushbutton, 22mm illuminated pushbutton, SCHZB4BW347, Clipsal pushbutton head
Technical Specifications
- Product type: Illuminated pushbutton head
- Series: Harmony XB4
- Color: Red
- Mounting diameter: 22 mm
- Operation: Spring return
- Illumination: BA9s bulb compatible
- Material: Metal and plastic
- Front ring: Chromium plated metal
- Degree of protection: IP66, IP67, IP69, IP69K
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Red flush illuminated pushbutton head
- Ø22 mm mounting diameter
- Spring return mechanism
- Compatible with BA9s bulb
- Robust Harmony XB4 series design
- High visibility for operator feedback
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with safety standards and proper operation.
Applications
- Industrial control panels
- Machinery operation stations
- Automation systems
- Manufacturing equipment
- Electrical control cabinets
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long-lasting design reduces replacement frequency and waste
- Energy-efficient illumination with BA9s bulb
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB4 Illuminated Pushbutton Head Red Ø22mm Spring Return SCHZB4BW347 is available for immediate purchase. Ideal for industrial control panels and automation systems.
