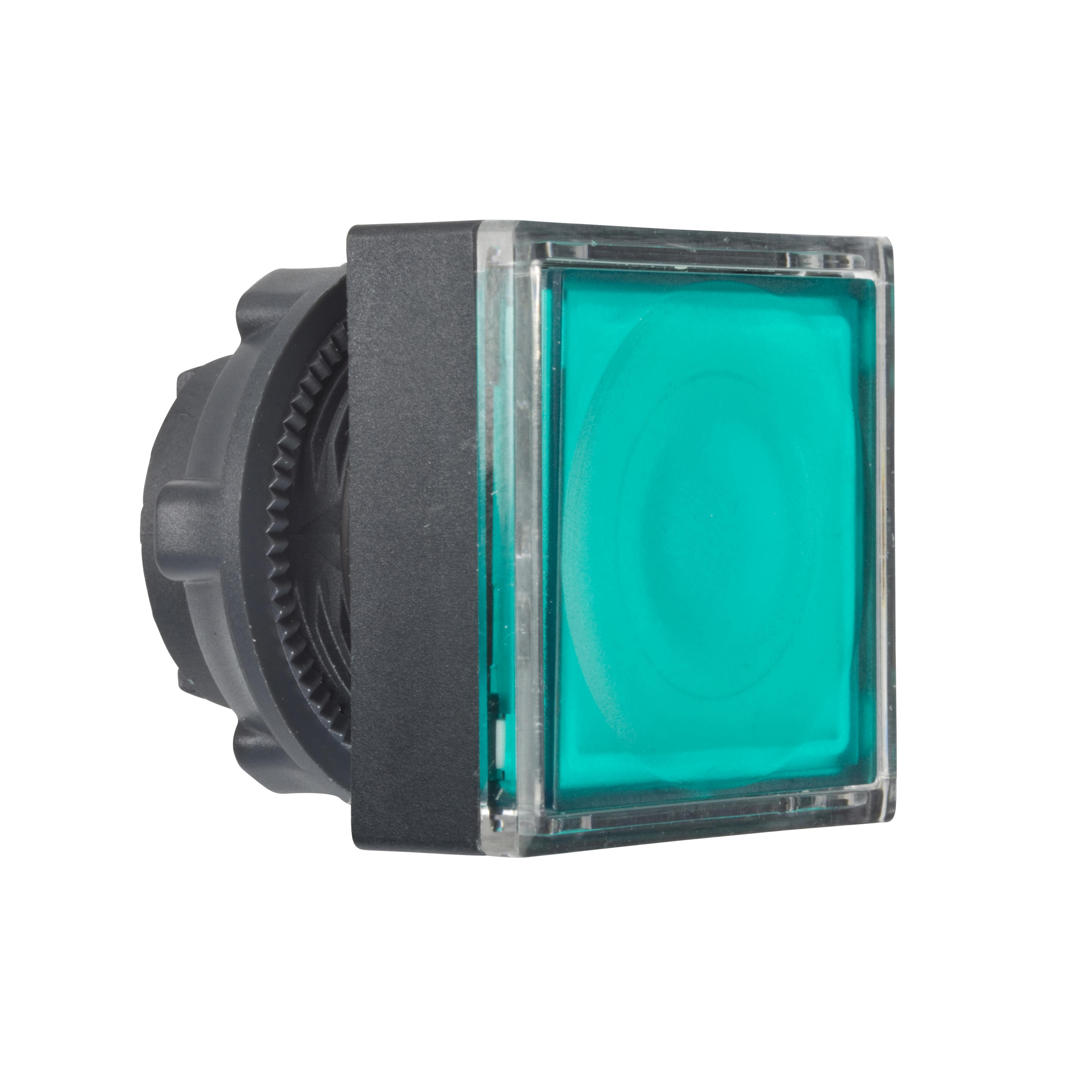

Illuminated Pushbutton Head | Green LED | 22mm Diameter | IP66 Rated | by Clipsal
The Illuminated Pushbutton Head features a flush design with an integral green LED, perfect for clear status indication in industrial control panels. With a standard 22mm diameter and a durable plastic construction, it's built for reliable operation in automation systems and machinery interfaces. The spring return mechanism ensures momentary operation, making it ideal for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Illuminated Pushbutton Head | Green LED | 22mm Diameter | IP66 Rated | by Clipsal
Brand: Clipsal
SKU: SCHZB5CW333
Alternatively Known As: Schneider Electric Harmony ZB5CW333, Green Illuminated Pushbutton, 22mm LED Pushbutton, Industrial Control Button
Technical Specifications
- Actuator type: Flush, illuminated pushbutton head
- Illumination: Integral green LED
- Mounting diameter: 22 mm
- Material: Plastic
- Shape: Squared
- Operation: Spring return (momentary)
- Marking: Unmarked
- Rated voltage: 24V AC/DC (LED)
- IP rating: IP66 (front face)
- Operating temperature: -40°C to +70°C
- Dimensions (H x L x W): 30mm x 40mm x 30mm
- Weight: 0.1 kg
Key Features
- Flush illuminated pushbutton head with integral LED
- 22 mm diameter for standard panel cutouts
- Green color for clear status indication
- Spring return mechanism for momentary operation
- Squared shape for modern panel aesthetics
- Durable plastic construction
- Unmarked actuator for flexible labeling
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery start/stop stations
- Automation systems
- Electrical enclosures
- Building management systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- LED illumination reduces energy consumption compared to traditional bulbs.
- Long-life LED minimizes maintenance and waste.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal SCHZB5CW333 Illuminated Pushbutton Head is available for immediate purchase. Ideal for industrial control panels, automation systems, and machinery interfaces.
