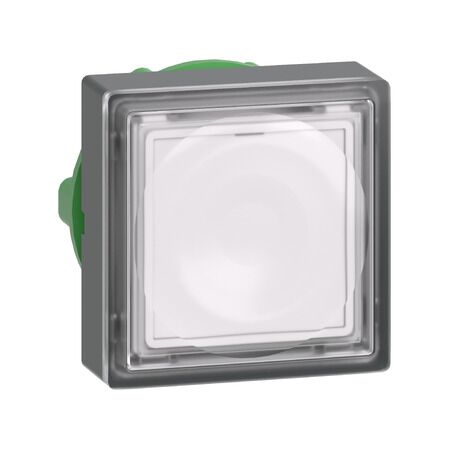

Illuminated Pushbutton Head | Harmony XB5 Series | 22mm Diameter | Universal LED Compatible | by Clipsal
The Illuminated Pushbutton Head is designed for enhanced visibility in industrial control panels and automation systems. With a modern square flush design and 22mm diameter, it fits standard panel cutouts perfectly. This durable plastic actuator features universal LED compatibility and a slot for custom legend insertion, making it ideal for machinery operation stations and electrical control cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Illuminated Pushbutton Head | Harmony XB5 Series | 22mm Diameter | Universal LED Compatible | by Clipsal
Brand: Clipsal
SKU: SCHZB5CW313
Alternatively Known As: Harmony XB5 illuminated pushbutton, 22mm illuminated pushbutton, Clipsal pushbutton head, Schneider Electric ZB5CW313, illuminated control button
Technical Specifications
- Actuator type: Illuminated pushbutton head
- Series: Harmony XB5
- Material: Plastic
- Color: White
- Shape: Square flush
- Diameter: 22mm
- Illumination: Universal LED compatible
- Legend: Slot for legend insertion
- Mounting: Panel mount
- Dimensions (H x L x W): 29mm x 40mm x 29mm
- Weight: 0.1 kg
Key Features
- Illuminated pushbutton head for enhanced visibility
- Square flush design for modern appearance
- 22mm diameter compatible with standard panel cutouts
- Universal LED compatibility for flexible illumination
- White actuator for clear status indication
- Plastic construction for durability and electrical insulation
- Legend insert slot for custom labeling
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and correct panel integration.
Applications
- Industrial control panels
- Machinery operation stations
- Automation systems
- Electrical control cabinets
- Building management systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- LED illumination reduces energy consumption compared to traditional bulbs
- Durable plastic construction minimizes replacement frequency and waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal SCHZB5CW313 Illuminated Pushbutton Head is available for immediate purchase. Ideal for industrial control panels, automation systems, and machinery operation stations.
