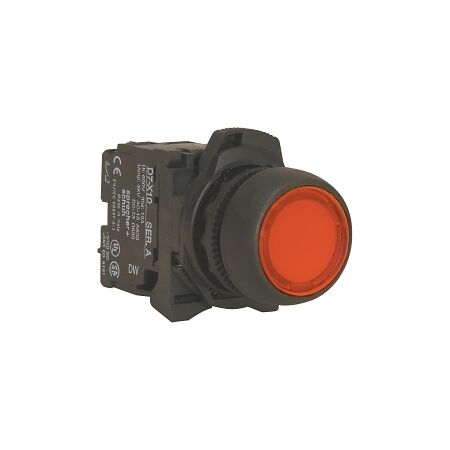

Illuminated Pushbutton Switch 22.5 mm | Red Lens | 240V 1NC | IP65 Rated by NHP
Illuminated pushbutton switch with 22.5 mm diameter and red lens—ideal for industrial control panels and commercial automation. Built for durability with IP65/IP66/IP69K protection and energy-efficient LED illumination.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sprecher and Schuh D7 Pushbutton 22.5 mm Complete PLT MOM Flush Red Lens Cap Illuminated 240V 1NC
Brand: NHP
SKU: D7PLF4PN7RX01
Alternatively Known As: D7 Pushbutton, 22.5 mm Red Pushbutton, Illuminated Pushbutton Switch
Technical Specifications
- Number of contacts (NC): 1
- Type of electric connection: Screw connection
- Supply voltage: 240 V
- Colour button: Red
- Type of button: Flush
- With front ring: Yes
- Material front ring: Plastic
- Degree of protection: IP65/IP66/IP69K
- Max shock acceleration: 100 g
- Max vibration acceleration: 10 m/s²
- Max vibration frequency operational: 2000 Hz
- Suitable for illumination: Yes
- Hole diameter: 22.5 mm
- Operator diameter: 29.6 mm
- Dimensions (H x L x W): 29.6mm x 22.5mm x 22.5mm
- Weight: 0.2 kg
Key Features
- 22.5 mm pushbutton with a red lens cap for visibility.
- IP65/IP66/IP69K rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control panels, machinery
- Commercial: Building automation, lighting control
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Long-lasting LED illumination reduces energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Pushbutton 22.5 mm Complete PLT MOM Flush Red Lens Cap Illuminated 240V 1NC is available now for immediate purchase. Ideal for industrial and commercial applications.
