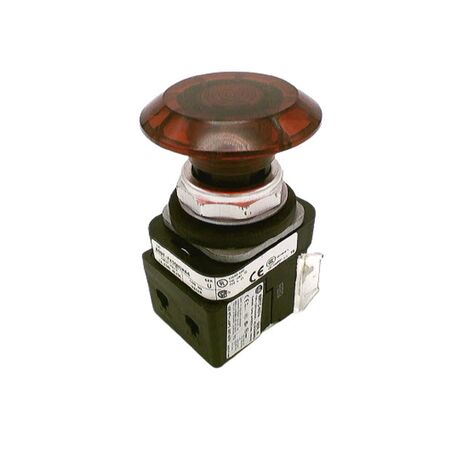

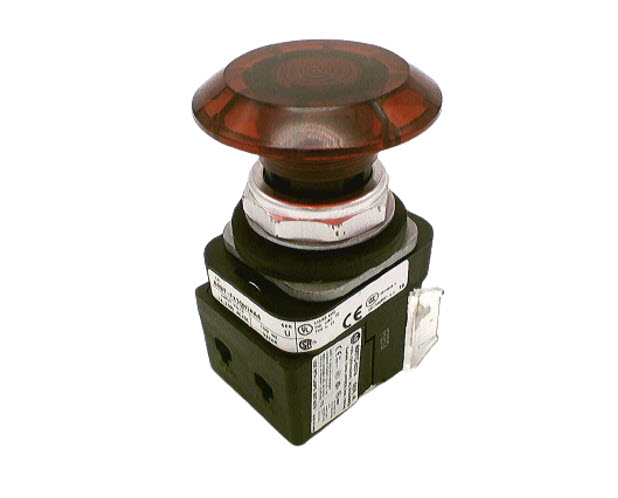

Product Name/Title: Allen-Bradley 800TFXJQH2RA4 Illuminated Pushbutton
Brand: Allen-Bradley
SKU: 800TFXJQH2RA4
Alternatively Known As: Illuminated Pushbutton Switch, Jumbo Mushroom Pushbutton, LED Push-Pull Button
Technical Specifications
- Type: 4/13 rated enclosure compatibility
- Switch Positions: 2 position push-pull
- Contact Configuration: 2 normally closed (NC) contacts
- Voltage Rating: 12-130V AC/DC
- Head Size: 30.5 mm jumbo mushroom
- Illumination: Red LED
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.2 kg
Key Features
- 30.5 mm jumbo mushroom head for easy operation
- Illuminated push-pull design
- Red LED indicator
- Suitable for Type 4/13 enclosures
- 2 position switch with 2 normally closed contacts
- Operates on 12-130V AC/DC
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery operation interfaces
- Emergency stop and start controls
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LED illumination reduces energy consumption compared to traditional bulbs
- Durable design reduces replacement frequency and waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TFXJQH2RA4 Illuminated Pushbutton is available for immediate purchase, ideal for industrial and machinery control panel applications.
