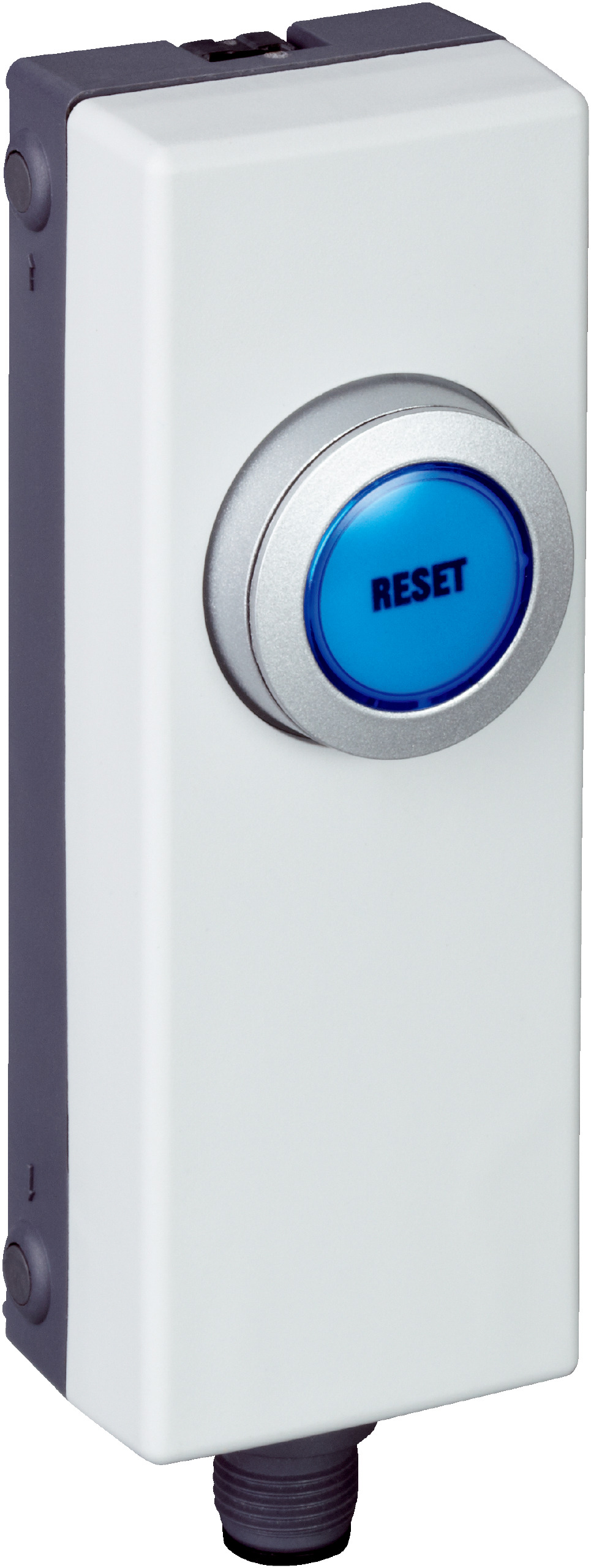

Illuminated Reset Pushbutton Switch | 1 N/O Contact | IP65 Rated | Slow Action Switching | by SICK
The Illuminated Reset Pushbutton Switch is designed for industrial automation control systems, featuring a normally open (N/O) contact and an IP65 rated enclosure for reliable operation in harsh environments. With a slow action switching element and a high electrical life of 1 million cycles, this switch is perfect for safety reset functions in machinery and electrical control panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact type: 1 normally open (N/O) contact
- Switching principle: Slow action switching element
- Rated operating current: 2 A at 24 V DC (DC-13 category)
- Contact material: Silver Nickel (AgNi) with 5 µm gold plating
- Electrical life: 1 million switching cycles for reset pushbutton
- Mechanical life: 1 million switching cycles for reset pushbutton
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -25°C to +70°C
- Storage temperature: -25°C to +80°C
- Connection type: Plug connector, M12, 4-pin
- Coupling nut material: PBT
- Power consumption: 14 mA at 24 V DC
- Housing material: PBT
- Dimensions (H x L x W): 123mm x 36mm x 40mm
- Weight: 0.106 kg
Key Features
- 1 normally open (N/O) contact
- Illuminable reset pushbutton for clear status indication
- Slow action switching element for reliable operation
- Plug connector M12, 4-pin with PBT coupling nut
- High mechanical and electrical life of 1 million switching cycles
- Protection class III (EN 61140) and IP65 rated enclosure
- Operating temperature range from -25°C to +70°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial control systems to ensure safety and compliance.
Applications
- Industrial automation control systems
- Safety reset functions in machinery
- Electrical control panels requiring reset pushbutton
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 14 mA at 24 V DC minimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

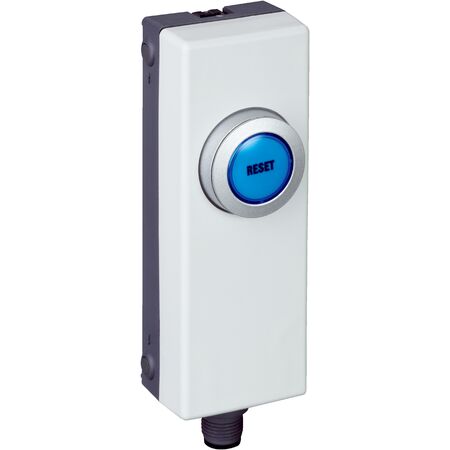

The SICK ER12-SB3C4 Illuminable Reset Pushbutton Switch is available for immediate purchase, ideal for industrial safety and control applications.
