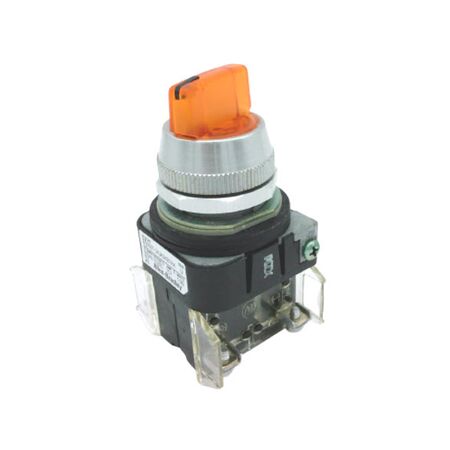

Illuminated Selector Switch | 30.5 mm Diameter | 3-Position Knob with Amber Incandescent | Type 4/13 Protection | by Allen-Bradley
The Illuminated Selector Switch is designed for industrial control applications, featuring a 30.5 mm diameter and a 3-position knob with spring return. With its amber incandescent illumination and durable metal construction, this switch ensures reliable operation in automation systems and machinery control, making it ideal for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 30.5 mm
- Positions: 3-position
- Type: Knob/lever with spring return from both sides
- Illumination: Amber incandescent
- Material: Metal
- Protection rating: Type 4/13
- Terminal guards included
- Voltage: 12V AC/DC
- Cam type: B7
- Contact configuration: First level - 1 NO 1 NC, second level - no contacts
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.2 kg
Key Features
- 30.5 mm diameter selector switch
- 3-position knob/lever type with spring return from both sides
- Illuminated amber incandescent indicator
- Metal construction with Type 4/13 protection
- Guards on terminals for safety
- B7 cam with first level 1 NO 1 NC contacts
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery operation control
- Automation systems requiring selector switches
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal construction reduces replacement frequency and waste
- Low power consumption incandescent illumination
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TC12JA20KB7AX Illuminated Selector Switch is available for immediate purchase, ideal for industrial and automation control applications.
