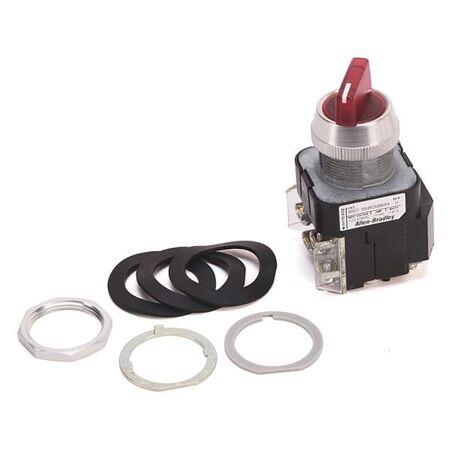

Illuminated Selector Switch | 30.5 mm Diameter | 3-Position Knob with Red LED | Type 4/13 Rated | by Allen-Bradley
The Illuminated Selector Switch is designed for industrial control applications, featuring a 30.5 mm diameter and a 3-position knob with spring return. With a bright red LED indicator and durable metal construction, it’s perfect for machinery operation control and automation systems, ensuring reliable performance in Type 4/13 environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 30.5 mm
- Positions: 3-position
- Type: Knob/lever with spring return from right
- Illumination: Red LED
- Voltage: 120 VAC, 50/60 Hz
- Contact configuration: First level - 1 NO 1 NC, second level - no contacts
- Enclosure rating: Type 4/13
- Material: Metal
- No guards included
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.3 kg
Key Features
- 30.5 mm diameter selector switch
- 3-position knob/lever type with spring return from right
- Illuminated red LED indicator
- Metal construction suitable for Type 4/13 environments
- No guards included
- B7 cam with first level 1 NO 1 NC contacts
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery operation control
- Automation systems requiring selector switches
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- LED illumination reduces energy consumption compared to traditional bulbs
- Durable metal construction extends product lifespan, reducing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800T16JRH5KB7AX Illuminated Selector Switch is available for immediate purchase, ideal for industrial and automation control applications.
