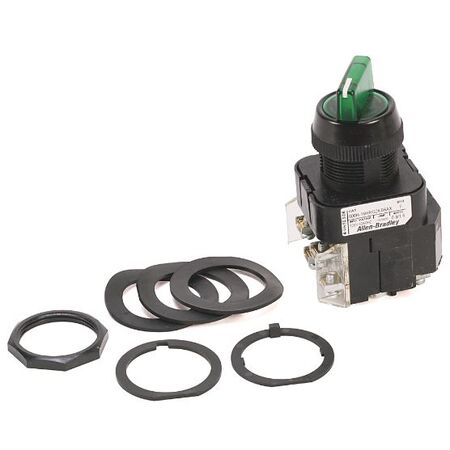

Illuminated Selector Switch | 30.5 mm Size | 3 Positions | Incandescent Light | by Allen-Bradley
The Illuminated Selector Switch is designed for industrial control applications, featuring a 30.5 mm size and three positions for versatile operation. With an illuminated knob and robust metal construction, it ensures safety and reliability in automation systems. Ideal for machinery operation control, this switch is built to withstand Type 4/13 environments, making it perfect for demanding industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Selector switch size: 30.5 mm
- Positions: 3
- Knob/lever type: Illuminated with incandescent light
- Voltage: 24V AC/DC
- Contact configuration: First level - 1 NO 1 NC, second level - no contacts
- Cam type: B7
- Standard knob with spring return from right
- Terminal guards included
- Enclosure rating: Type 4/13
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.3 kg
Key Features
- 30.5 mm selector switch with 3 positions
- Illuminated knob/lever type with incandescent light
- Metal construction suitable for Type 4/13 environments
- Guards on terminals for safety
- Standard knob with spring return from right
- B7 cam with first level 1 NO 1 NC contacts
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery operation control
- Automation systems requiring selector switches
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal construction reduces replacement frequency and waste
- Low power consumption incandescent illumination
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TC24JG5KB7AX Illuminated Selector Switch is available for immediate purchase, ideal for industrial and automation control applications.
