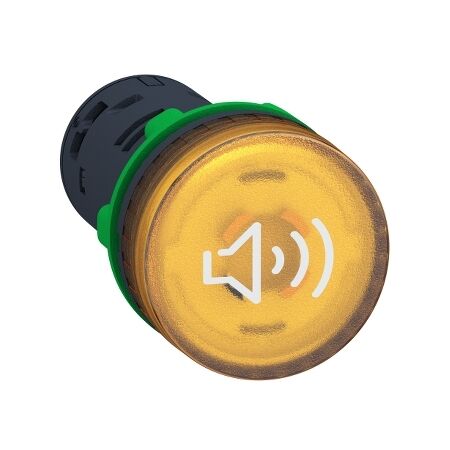

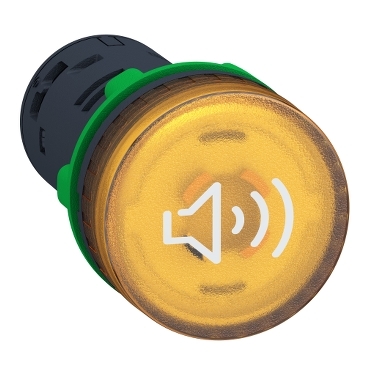

Illuminated Yellow Buzzer 24V AC/DC | 70-85 dB Sound Level | IP40 Rated | Compact Design | @Pack of 1 | by Clipsal
The Illuminated Yellow Buzzer 24V AC/DC is perfect for industrial control panels and machinery status indication. With a sound level of 70-85 dB and an IP40 rating, this robust buzzer provides clear visual and audible alerts. Designed for easy panel mounting, it operates efficiently on a 24V supply, making it an ideal choice for automation systems and alarm setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Illuminated Yellow Buzzer 24V AC/DC | 70-85 dB Sound Level | IP40 Rated | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXB5KS2B8
Alternatively Known As: 24V Panel Buzzer, Illuminated Buzzer Indicator, Clipsal Panel Buzzer, Industrial Buzzer Light, SCHXB5KS2B8
Technical Specifications
- Supply Voltage: 24V AC/DC
- Illumination Colour: Yellow
- Buzzer Sound Level: 70-85 dB
- Mounting: Panel mount (22mm diameter cutout)
- Ingress Protection: IP40 (front)
- Operating Temperature: -25°C to +70°C
- Material: Plastic housing
- Dimensions (H x L x W): 50mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- Illuminated yellow indicator for clear visual status
- Integrated buzzer for audible alerts
- Operates on 24V AC/DC supply
- Compact and robust design
- Easy panel mounting
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery status indication
- Alarm and warning systems
- Automation equipment
- Electrical switchboards
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption for energy efficiency
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Illuminated Yellow Buzzer 24V AC/DC SCHXB5KS2B8 is available for immediate purchase. Ideal for industrial control panels, automation systems, and machinery status indication.
